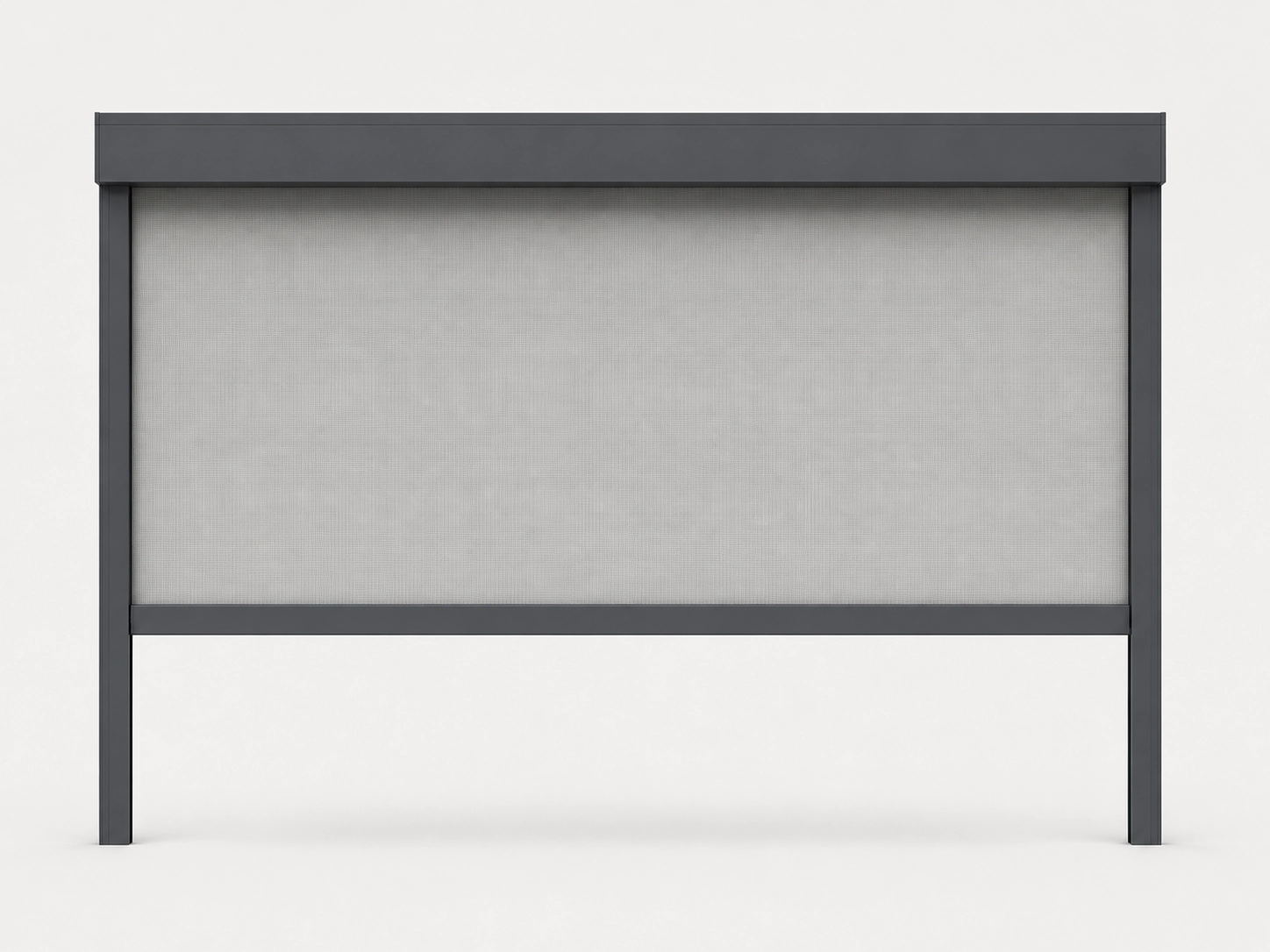

TR85-100 Extra-Wide Indoor Windproof Roller Blind: Built Beyond the 2.5 m Limit
A true upgrade does not make small adjustments. It changes the limits of what a roller blind can achieve.
|
Up to 4 m
Seamless single span
|
85 x 100 mm
Reinforced headbox
|
45 x 25.4 mm
Slim bottom rail
|
Large windows are now a defining feature of premium interiors. Floor-to-ceiling glazing, panoramic curtain walls, and open commercial spaces create brighter, more impressive environments. They also expose the limits of conventional roller blind systems.
Once a window becomes wider, the challenge is no longer simply to make a larger blind. The entire system must manage higher loads, maintain smooth fabric travel, preserve a clean appearance, and remain practical to install. Standard solutions may require multiple blinds, introduce visible gaps, or struggle with uneven movement and fabric deformation.
The TR85-100 extra-wide indoor windproof roller blind was engineered for this exact problem. Developed from the proven WR85 platform, it is a complete structural upgrade for large-scale indoor shading projects - not a cosmetic revision of an existing model.
With a seamless single-blind span of up to 4 m, a strengthened headbox, a dedicated counterbalance system, and project-specific hardware, the TR85-100 provides a more dependable solution for expansive glazing.
Why Standard Roller Blinds Struggle with Extra-Wide Windows
For conventional indoor windows up to approximately 2.5 m wide, a standard roller blind can offer an effective balance of performance, cost, and installation convenience. Beyond that range, several engineering problems become more difficult to control:
- Increased fabric weight places more stress on the cassette, brackets, and drive components.
- Wide blinds are more vulnerable to uneven travel, sagging, rippling, or wrinkling.
- Inconsistent load distribution can affect operating smoothness and long-term stability.
- Dividing one opening into several blinds creates light gaps and interrupts the architectural elevation.
- Large assemblies are more difficult to position, align, and install accurately on site.
These are structural issues. Solving them requires the complete load path to be reconsidered as one integrated system.
Three Systems for Three Project Scales
| System | Best Suited To | Key Characteristics |
|---|---|---|
| WR85 | Standard openings up to 2.5 m wide | Mature 85 x 85 mm cassette, efficient installation, and strong value for repeat projects |
| TR85 | Openings up to 2.5 m requiring improved fabric retention | T-style windproof structure with upgraded sealing and appearance |
| TR85-100 | Extra-wide openings up to 4 m | Reinforced headbox, dedicated components, balanced fabric travel, slim bottom rail, and upgraded installation system |
Five Engineering Upgrades Behind the TR85-100
|
1
|
Purpose-Built Components for Higher LoadsA dedicated drive end cap, reinforced support base, precision counterbalance components, anti-deformation limit structures, and the enlarged 85 x 100 mm headbox create a stronger load-bearing system for extra-wide applications. |
|
2
|
Counterbalanced, Flatter Fabric TravelAn integrated fabric-support structure and precision counterbalance mechanism help distribute the fabric's self-weight across the blind. The result is smoother travel, straighter edges, and a flatter surface at different stopping positions. |
|
3
|
A Seamless Single Span of Up to 4 mOne continuous blind can cover broad floor-to-ceiling windows, panoramic glazing, or curtain-wall openings without intermediate posts or light gaps. This preserves cleaner sightlines and a more unified architectural elevation. |
|
4
|

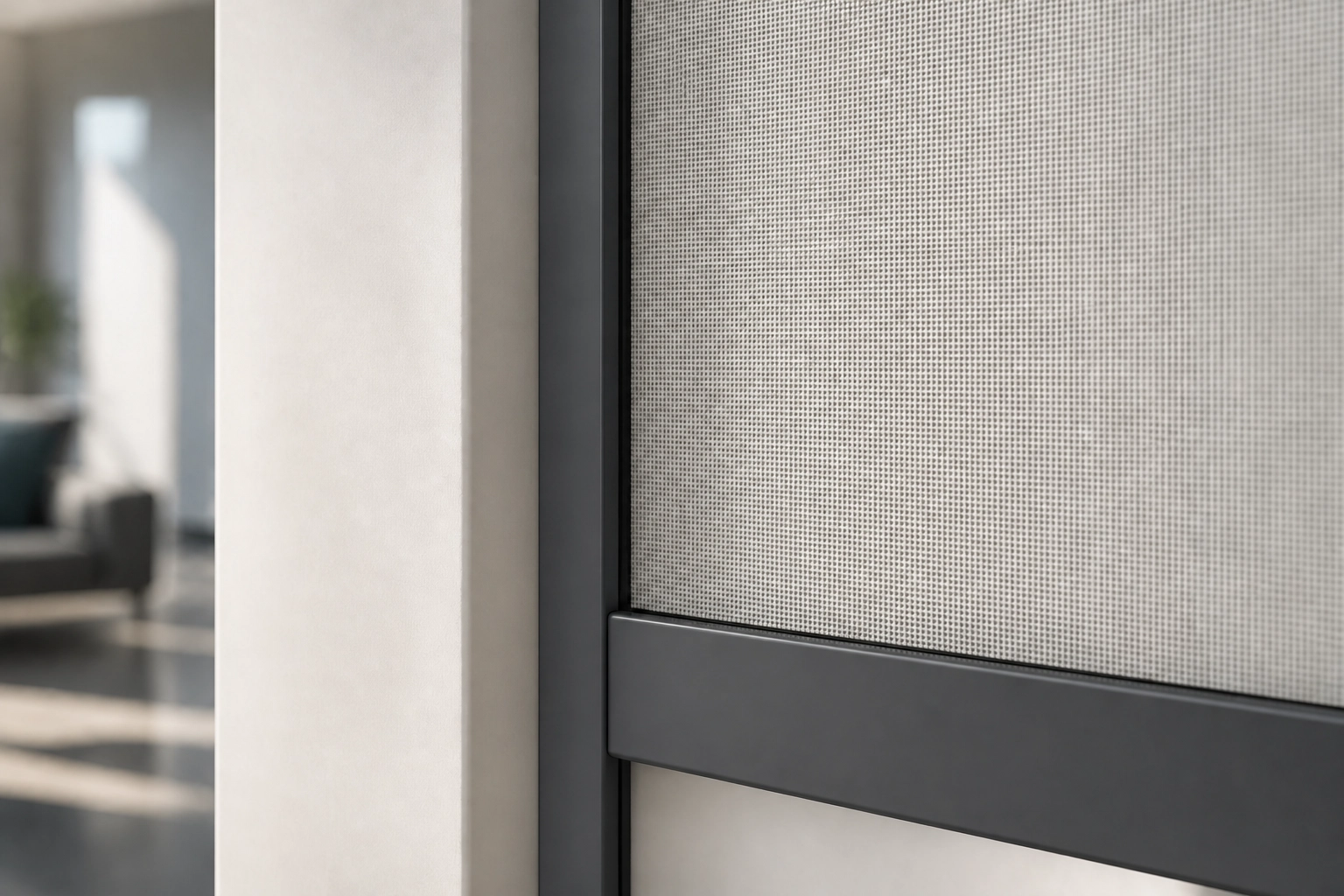

A Slim 45 x 25.4 mm Bottom RailThe dedicated slimline bottom rail maintains stable fabric guidance while reducing visual weight. Its clean profile suits modern residences, premium offices, hotels, showrooms, and commercial interiors. |
|
5
|
A More Flexible Installation MethodThe dedicated 40 x 30 mm side-track system allows the headbox to be installed first, followed by the tracks. This gives installers greater flexibility in ceiling-mounted, recessed, restricted-access, and later-stage fit-out conditions. |
What Does "Windproof" Mean Indoors?
In this application, "windproof" refers to the guided fabric-retention structure. The fabric edges remain controlled within the side tracks, helping the blind resist displacement, maintain better closure, and travel more consistently than an open-sided roller blind. It supports a tauter and more precisely guided finish wherever stable indoor shading is required.
Where the TR85-100 Makes the Most Sense
| Premium Residential Panoramic windows, luxury villas, and full-height apartment glazing |

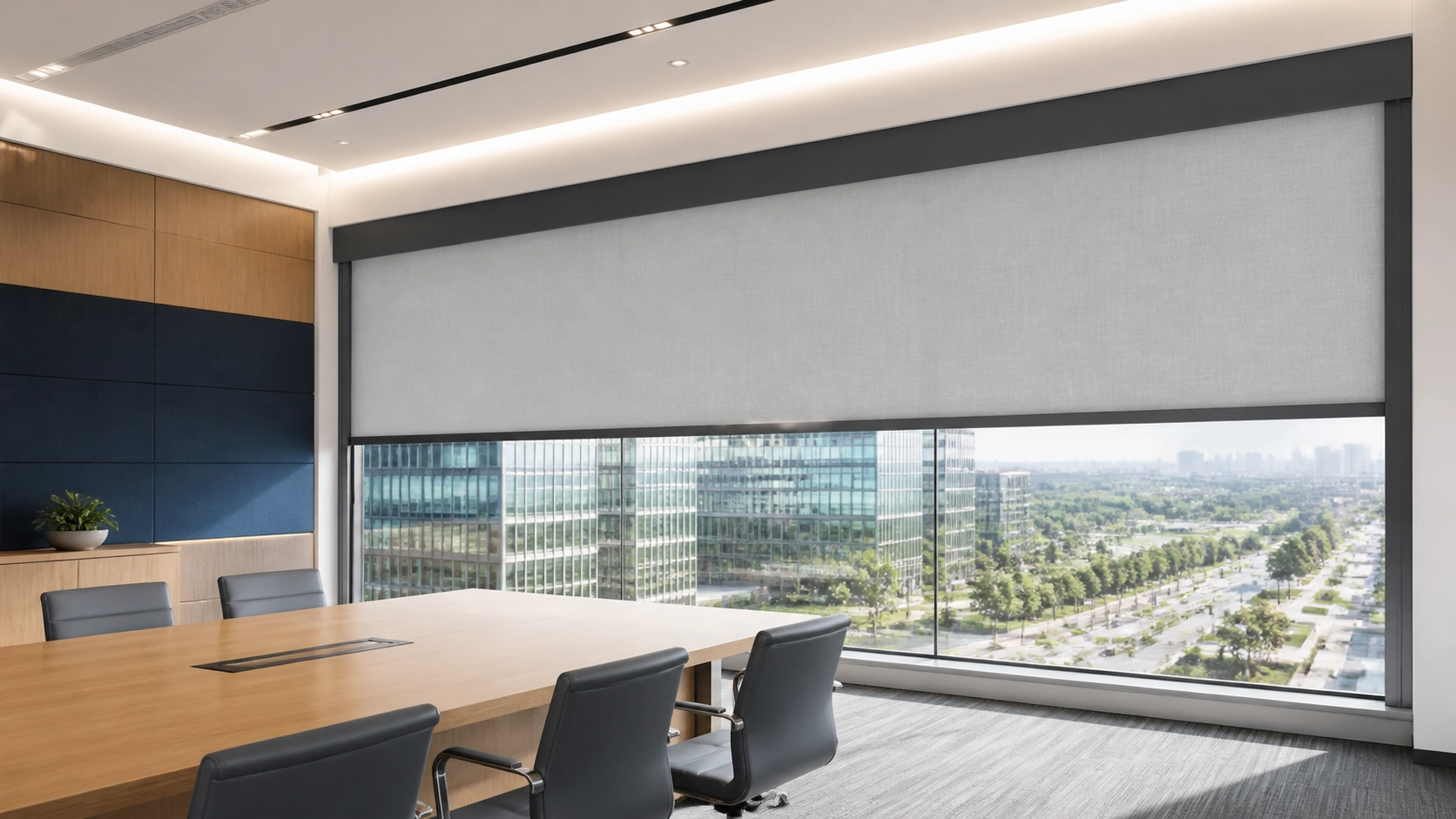

| Corporate Interiors Executive offices, conference rooms, and glazed workspaces |
| Hospitality and Retail Hotel lobbies, suites, showrooms, and flagship stores |
| Large Commercial Spaces Exhibition halls, curtain walls, and floor-to-ceiling window applications |
Benefits Beyond Product Specifications
A More Complete Product Range
WR85, TR85, and TR85-100 cover standard windows, upgraded conventional openings, and extra-wide glazing without forcing one product outside its intended range.
Lower After-Sales Risk
Reinforced components and balanced fabric travel directly address deformation, skewing, jamming, uneven surfaces, and unstable headbox support.
Greater Design Value
A seamless span of up to 4 m and a slim bottom rail produce a cleaner result than dividing one large opening into several smaller blinds.
Better Adaptability on Site
The upgraded installation method supports ceiling-mounted conditions, large openings, and later-stage interior fit-out, helping reduce installation conflicts on complex projects.
How to Choose the Right System
Choose WR85 for standard openings up to 2.5 m wide where value, repeatability, and fast delivery are the main priorities.
Choose TR85 for openings up to 2.5 m wide where improved fabric retention, sealing, and visual refinement are required.
Choose TR85-100 for extra-wide openings up to 4 m wide where a seamless elevation, reinforced engineering, balanced fabric travel, and premium detailing are essential.
A True Upgrade Changes the Boundary
The TR85-100 is not simply a wider version of the TR85. Its reinforced cassette, dedicated component system, counterbalanced operation, slim bottom rail, and site-friendly installation method redefine what an indoor windproof roller blind can achieve at architectural scale.
When the window exceeds the limits of a conventional blind, the solution should not be a compromise. It should be a system designed for the span from the beginning.
Discuss Your Extra-Wide Roller Blind Project
Share your opening dimensions, drawings, fabric requirements, and control method with our technical team. We will help evaluate the application and recommend the appropriate WR85, TR85, or TR85-100 configuration.
Request Project Support
