WR135-150 Ultra-Wide Wind-Resistant Zip Screen
Product Overview
The NewHoo WR135-150 is designed for outdoor openings where standard zip screens begin to face structural and fabric control limitations. It is developed specifically for the 5.5–6.5 m width range, where keeping the fabric flat, maintaining stable zipper guidance, and reducing roller tube bending become critical.
To solve these challenges, WR135-150 uses reinforced structural components, double-layer roller tube options, and a three-bearing balancing system. This combination helps improve fabric control, support wider spans, and maintain smoother operation in demanding outdoor environments.
For projects that require greater fabric flatness and stronger structural support than conventional systems can provide, WR135-150 offers a more practical solution.
Built for 5.5–6.5 m Wide Openings
At widths above 5.5 m, many standard wind-resistant zip screens start to experience problems such as tube deflection, uneven fabric tension, and unstable zipper movement.
WR135-150 is built specifically to solve this size range. Instead of extending a smaller system beyond its ideal range, it uses stronger structural components and wider tube configurations designed for this exact application.
This makes it more suitable for commercial outdoor projects, wider pergola openings, and larger terrace enclosures.
Dual Tube Configuration for Different Project Priorities
WR135-150 offers two double-layer tube configurations to match different project priorities.
For projects that require higher vertical coverage, the 88 double-layer tube provides a better balance between width and height. For projects where wider openings are the primary requirement, the 100 double-layer tube offers greater bending resistance and improved structural support.
This allows the system to be matched more precisely according to the actual opening size rather than using one tube for every application.
Three-Bearing Balancer for More Stable Zipper Guidance
One of the key challenges in wider zip screens is keeping the zipper aligned when entering the guide rail.
WR135-150 uses a three-bearing balancing system to help guide the zipper vertically into the side rail. This helps reduce zipper misalignment, lower wear on the zipper edge, and improve long-term running stability.
For larger screens, this protection becomes more important as system width increases.
Reinforced Cassette Built for Extra-Wide Loads
The WR135-150 uses a reinforced cassette structure with a base wall thickness of over 2.5 mm.
This helps improve bending resistance and provides stronger structural support for wider openings. Compared with lighter standard systems, the reinforced cassette is better suited for maintaining shape and stability under larger fabric loads.
This is especially important in projects exposed to stronger wind pressure or higher daily use.
Press-Fit Fabric Installation for Large Screens
Both the roller tube and bottom rail use a press-fit fabric fixing structure, eliminating the need for welding during fabric assembly.
For wider screens, this makes fabric installation easier and helps reduce welding-related tension differences that can affect fabric flatness.
This also improves convenience for on-site installation and future fabric replacement.
Three-Piece Side Rail for Easier Installation and Maintenance
WR135-150 uses a common three-piece side rail structure, making installation and future maintenance more straightforward.
The design allows easier disassembly while maintaining reliable zipper guidance and side stability. This is especially useful for commercial projects where maintenance access may be important over time.
Recommended Fiberglass Screen Fabric
For WR135-150, high-quality fiberglass screen fabric is recommended.
For wider systems, fabric quality has a direct impact on flatness, tension consistency, and long-term stability. Fiberglass fabrics offer better dimensional stability and are more suitable for this type of large outdoor zip screen application.

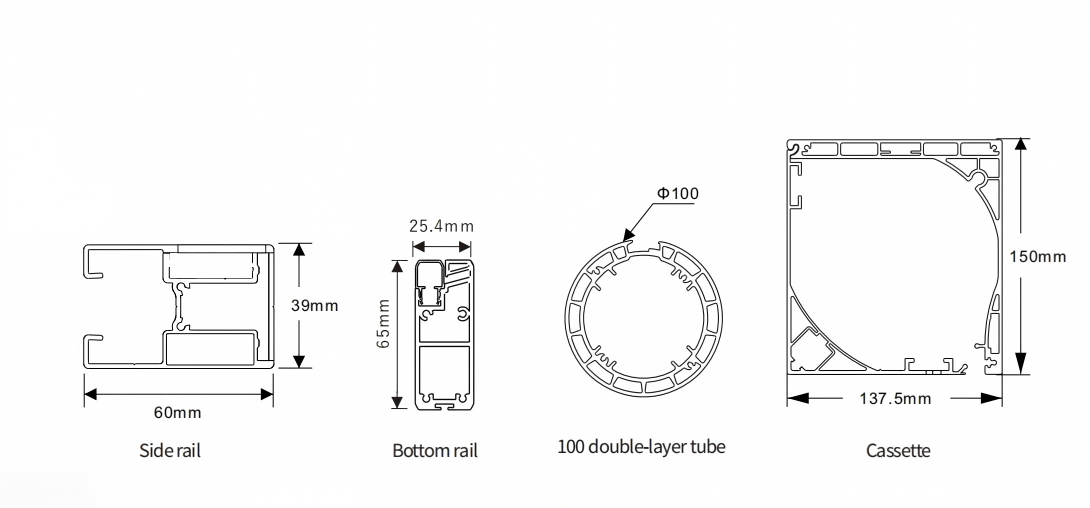

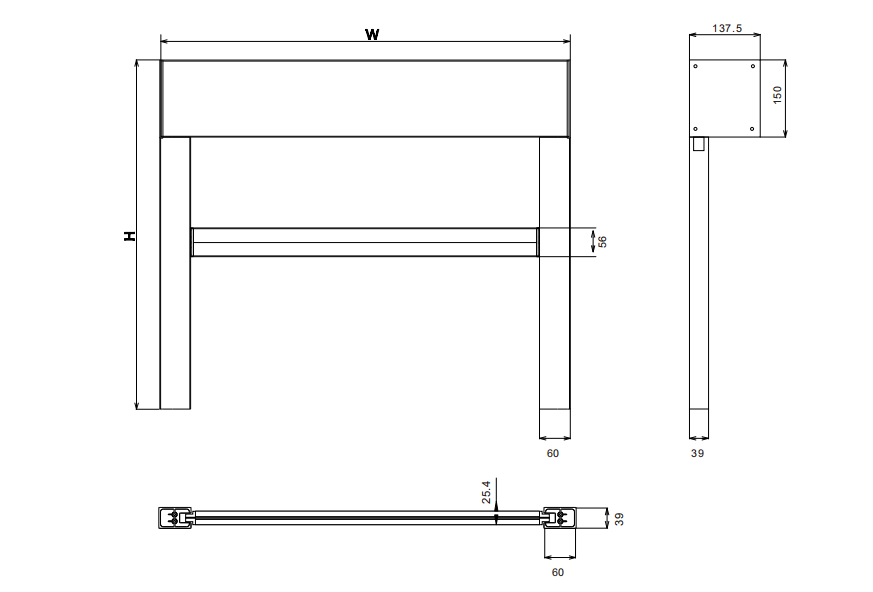

Technical Specifications
| Model | Width Range | Motor | Roller Tube | Bottom Rail | Max Height |
|---|---|---|---|---|---|
| WR135-150 | 5.5–6 m | 45 tubular motor, 20–30 Nm | 88 double-layer tube | WR120-140 special bottom rail | 5.5 m |
| WR135-150 | 5.5–6.5 m | 45 tubular motor, 20–30 Nm | 100 double-layer tube | WR120-140 bottom rail | 3.5 m |
The final configuration should be selected according to the actual opening width and height. For taller openings within 6 m width, the 88 double-layer tube is preferred. For wider openings up to 6.5 m, the 100 double-layer tube provides stronger support.
Fabric & Finish Options
WR135-150 can be configured with different outdoor fabrics according to the project requirements, including sunscreen fabric, privacy mesh and blackout fabric.
Aluminum profiles are available in powder-coated RAL colors, anodized finishes, and custom project colors to match different architectural styles.
Recommended Applications
WR135-150 is suitable for outdoor shading projects that need more extensive single-span coverage while maintaining better fabric flatness and structural support. It is often used for hotel terraces, commercial pergolas, outdoor restaurant areas, large balconies, shopping center façades, villa outdoor spaces, and large leisure areas.
For B2B projects, WR135-150 is especially suitable when the opening width reaches 5.5–6.5 m and standard outdoor zip screen systems may no longer provide enough tube support or fabric stability. The system helps project buyers match wider openings with a more suitable reinforced structure and double-layer tube configuration.
Project Configuration Support
Every large outdoor opening has different structural conditions, wind exposure, and installation requirements.
NewHoo can help recommend the suitable tube configuration, fabric ty, pe and structural setup according to your actual project dimensions.
This helps ensure the system is properly matched for width, height, and performance requirements.
Send us your opening width, height, installation drawings, and project requirements.
Our team can help recommend the suitable WR135-150 Wind-Resistant Zip Screen configuration for your outdoor shading project.
