Heavy-Duty ZIP Screen for Tall Openings
Product Overview

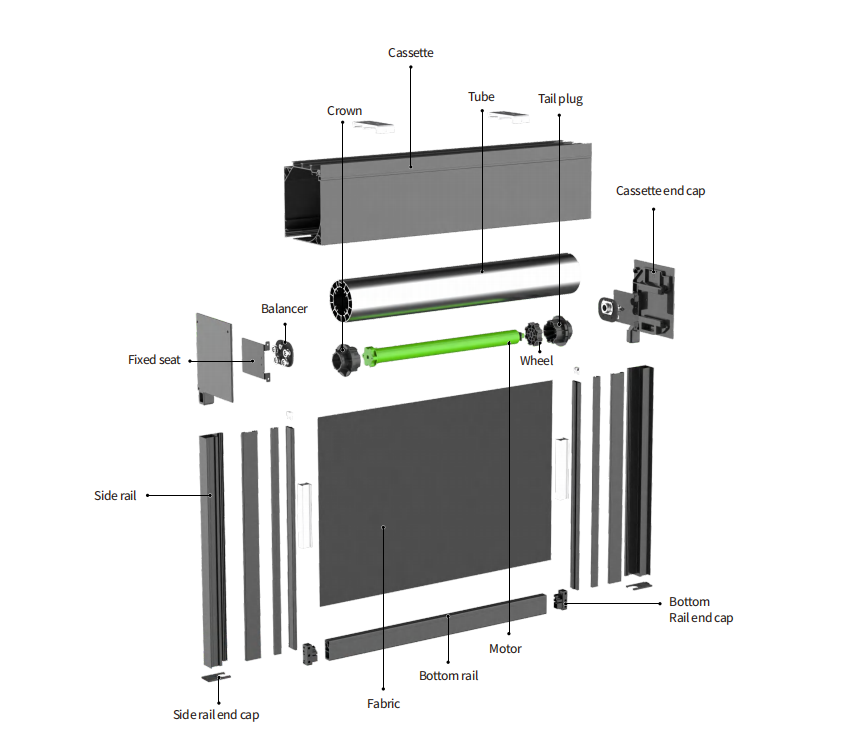

The NewHoo WR200-230 Heavy-Duty ZIP Screen for Tall Openings is engineered for projects where exceptional height, structural strength, and reliable fabric control are essential. Unlike standard wind-resistant ZIP screens, it combines a reinforced 206 × 237 mm cassette, 100 or 130 mm double-layer roller tubes, a five-bearing dual-support balancer, and robust 80 × 46 mm side rails to deliver stable performance across extra-high openings.
Designed for hotel lobbies, commercial atriums, tall façades, workshop partitions, curtain walls, and other large vertical spaces, the WR200-230 addresses the challenges created by heavier fabric panels, increased tube deflection, longer travel distances, and demanding installation conditions.
The standard recommended width is up to 3 m. For wider openings, a spliced configuration of approximately 6 m can be evaluated according to the project. The 100 mm double-layer tube supports openings below 8 m high, while the stronger 130 mm double-layer tube is designed for extra-high openings below 12 m
Engineered for Extra-High Openings
The WR200-230 Heavy-Duty ZIP Screen for Tall Openings provides greater vertical coverage and stronger structural support than conventional ZIP screen system
As opening height increases, the fabric becomes heavier, the roller tube carries greater bending loads, and the guide system must maintain smooth alignment over a longer operating distance. The WR200-230 meets these demands with a larger reinforced cassette, application-specific double-layer tubes, and a heavy-duty guided structure
This makes it a dependable choice for tall openings where ordinary outdoor blinds may lack the strength and stability required for safe, long-term operation.
100 / 130 Double-Layer Tube Options
• 130 mm double-layer tube: recommended for extra-high openings below 12 m.
Five-Bearing Dual-Support Balancer
The five-bearing dual-support balancer improves fabric guidance and operational stability. Because the fabric travels farther in an extra-high system, accurate zipper alignment is critical during both raising and lowering.
The balancer helps the zipper edge enter the guide rail smoothly, reduces alignment issues, and promotes reliable long-term operation—particularly in frequently used commercial spaces.
Press-Fit Fabric Installation Without Welding
The roller tube and bottom rail use a press-fit fabric installation method, without welding.
For large and tall fabric panels, this helps reduce installation complexity and avoids welding-related tension problems that may affect fabric appearance. It also makes the fabric assembly process more suitable for project-based installation.
80 × 46 mm Three-Piece Side Rail
Heavy-duty 80 × 46 mm side rails keep the ZIP fabric securely guided throughout its extended travel.
The practical three-piece construction simplifies installation, disassembly, and service access while maintaining consistent fabric control—an important advantage for tall commercial and architectural openings.
Flexible Top-Mount and Inside-Frame Installatio
The WR200-230 supports both top-mount and inside-frame installation, giving project teams greater flexibility when working with hotel lobby structures, commercial atriums, steel frames, curtain walls, and tall façade openings.
The final mounting method should be confirmed against the project drawings, substrate, fixing points, and site conditions before production.

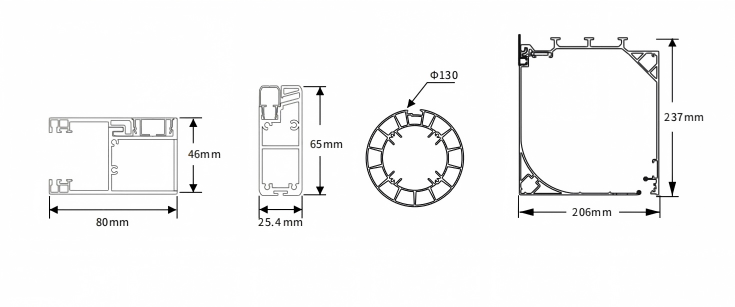

Reinforced 206 × 237 mm Cassette
The reinforced 206 × 237 mm cassette is purpose-built for extra-high configurations. Its larger internal capacity accommodates the 100 or 130 mm double-layer tube and protects the fabric and roller mechanism when retracted.
The robust cassette construction also improves installation security and overall system stability in demanding large-scale vertical shading applications.
Width, Height, and Fabric Splicing Planning
Every WR200-230 Heavy-Duty ZIP Screen for Tall Openings should be configured according to the opening width, height, fabric roll width, and installation conditions.
The standard recommended width is up to 3 m. Where wider coverage is required, a spliced configuration of approximately 6 m may be evaluated. Fabric roll width, splice position, splice quantity, and visual requirements must be confirmed before production.
Careful planning helps set clear size expectations and ensures that the selected system matches actual engineering and fabric-production conditions.

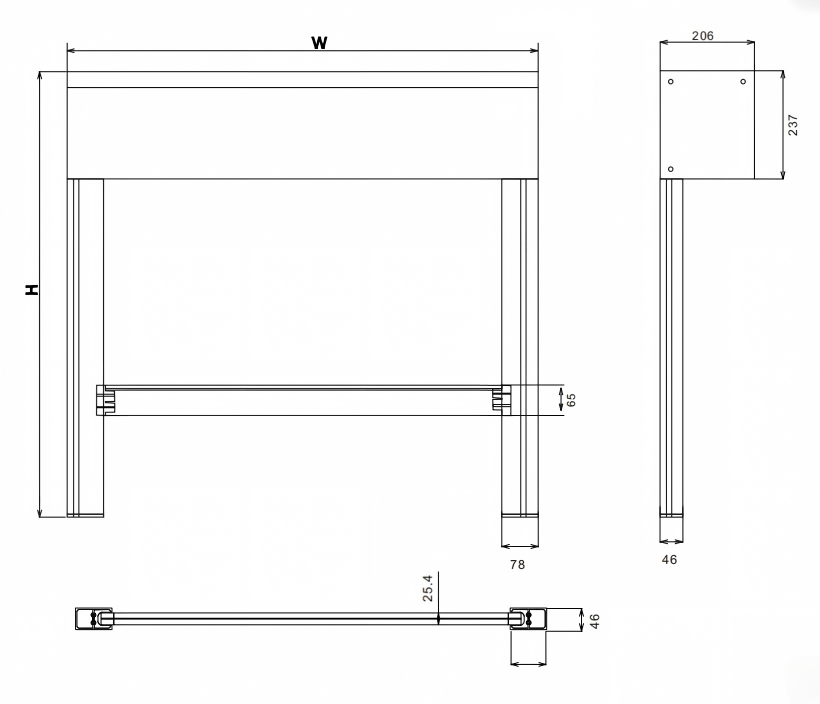

Technical Specifications
| Model | Recommended Width | Spliced Width Option | Roller Tube | Max Height | Cassette | Side Rail | Bottom Rail |
|---|---|---|---|---|---|---|---|
| WR200-230 | ≤ 3 m | 6–8 m by spliced configuration | 100 double-layer tube | < 8 m | 206 × 237 mm | 80 × 46 mm | 25.4 × 65 mm |
| WR200-230 | ≤ 3 m | 6–8 m by spliced configuration | 130 double-layer tube | < 12 m | 206 × 237 mm | 80 × 46 mm | 25.4 × 65 m |
The final configuration must be confirmed according to the opening dimensions, fabric width, splicing plan, mounting method, and installation conditions.
Fabric & Finish Options
Recommended Applications
• Commercial atriums
• Tall façades and curtain wall openings
• Workshop and warehouse partitions
• Large public spaces
• Oversized indoor-outdoor shading areas
Project Configuration Support
NewHoo can assess whether a standard-width or spliced-width WR200-230 configuration is more suitable for your project. Based on the opening width and height, installation drawings, mounting conditions, and fabric requirements, our team can recommend the appropriate roller tube, cassette, side rail, bottom rail, and fabric solution.
Send us your opening dimensions, installation drawings, mounting conditions, fabric requirements, and desired coverage width. NewHoo will help you configure a Heavy-Duty ZIP Screen for Tall Openings that matches the real structural and installation requirements of your project
