WR120-140 Ultra-Wide Wind-Resistant Zip Screen
Product Overview
The NewHoo WR120-140 is developed for outdoor spaces where standard zip screens are no longer large enough. It is built for oversized openings from 6 m to 30 m wide and up to 3.2 m high, making it suitable for commercial buildings, terraces, pergolas, restaurants and other wide-span outdoor projects.
For larger installations, transportation, lifting, and on-site assembly often become difficult. WR120-140 solves this by allowing the cassette, roller tube, and bottom rail to be connected on site, making delivery and installation much easier for extra-wide systems.
At the same time, the built-in balancing system helps keep the fabric flatter across wide spans, reducing uneven tension and improving long-term operation.
Built for Large Openings That Need More Than Standard Screens
When an opening becomes wider, normal zip screens often face problems such as fabric sagging, transport limitations, and difficult maintenance.
WR120-140 is designed specifically to solve these issues.

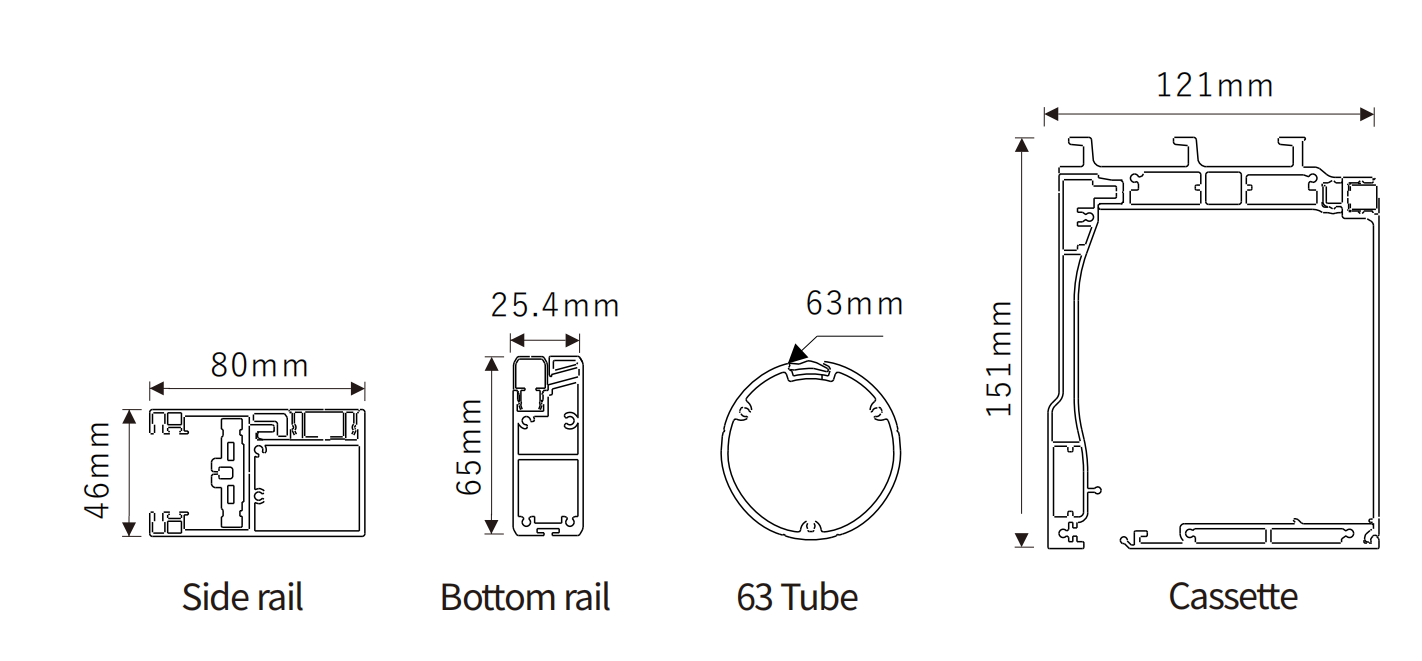

Its reinforced 121 × 151 mm cassette system provides stronger structural support for larger openings, while the three-piece side guide rail keeps the zipper-guided fabric stable during operation. This makes the system suitable for projects where strong wind, wide spans, and high daily use are expected.
Built for Large Openings That Need More Than Standard Screens
When an opening becomes wider, normal zip screens often face problems such as fabric sagging, transport limitations, and difficult maintenance.
WR120-140 is designed specifically to solve these issues.
Its reinforced 121 × 151 mm cassette system provides stronger structural support for larger openings, while the three-piece side guide rail keeps the zipper-guided fabric stable during operation. This makes the system suitable for projects where strong wind, wide spans, and high daily use are expected.
Better Fabric Control Across Extra-Wide Widths
One of the biggest challenges in extra-wide screens is keeping the fabric flat.
WR120-140 uses balancing systems at both ends together with full-width support strips to help distribute tension more evenly across the entire screen. This helps reduce wrinkles and keeps the fabric surface cleaner, especially on wider installations.
The63 mm slotted roller tube also helps secure the fabric without leaving pressure marks, which improves both appearance and durability.
Easier to Transport, Assemble, and Maintain
For large projects, size is not the only challenge. Moving oversized systems into buildings, upper floors, or narrow access areas can create major installation problems.

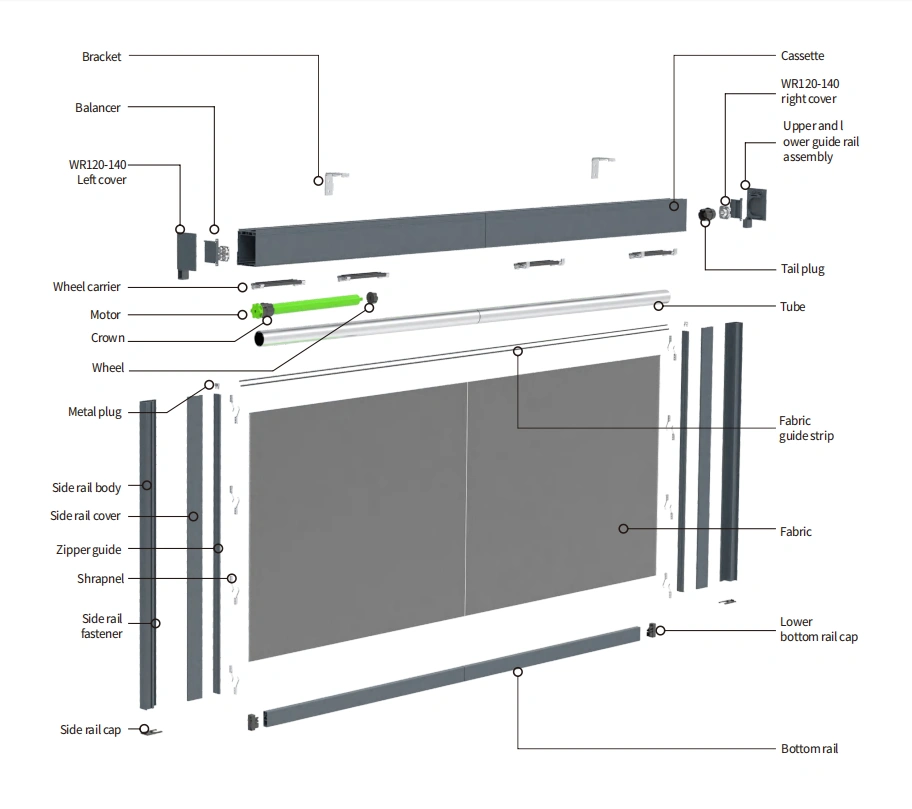

WR120-140 uses a connectable structural design, allowing the cassette, roller tube, and bottom rail to be transported separately and assembled on site.
This makes the system more practical for large commercial projects.
Maintenance is also simplified. The motor can be replaced by opening the motor cover, and the fabric can be changed through the rear cover without removing the complete system.
Flexible Installation for Different Structures
WR120-140 supports both wall-mountedandceiling-mountedinstallation.
For ceiling mounting, installers can choose standard top brackets or a full mounting plate depending on the project structure.
The side guide rails use a three-piece structure, making installation easier while maintaining reliable fabric guidance and system strength.

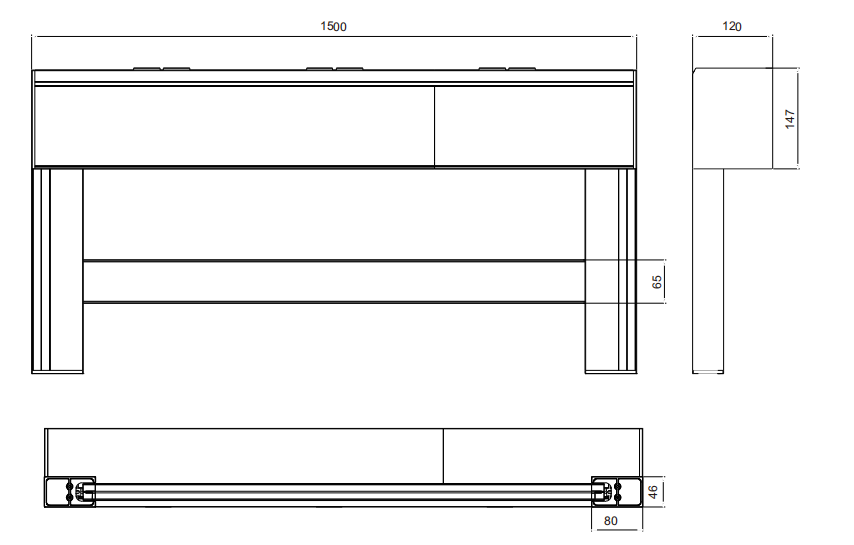

Technical Specifications
| Model | Recommended Width | Max Height | Wind Resistance | Cassette | Roller Tube | Guide Rail | Drive System | Installation |
|---|---|---|---|---|---|---|---|---|
| WR120-140 | 6–30 m | 3.2 m | Up to Class 12 | 121 × 151 mm | 63 mm slotted tube | Three-piece side rail | 45 tubular motor, 50 Nm | Wall mount/ceiling mount |
For systems wider than 8 m, an end spring balancing system is recommended to improve long-term stability and smoother operation.
Fabric and Finish Options
WR120-140 can be matched with different outdoor fabrics depending on the project.
Available options include sunscreen fabric, privacy mesh, blackout fabric, and insect screen fabric.
Aluminum profiles can be finished in powder-coated RAL colors, anodized finishes, or custom project colors to match the building design.
Recommended Applications
WR120-140 is suitable for oversized outdoor shading projects where standard zip screens cannot cover the required width.
It is commonly used for commercial terraces, restaurants, hotels, pergolas, large balconies, shopping centers, exhibition halls,s and industrial outdoor spaces.
For projects above 8 m wide, it provides a more practical and stable solution compared with conventional single-piece zip screen systems.
Project Configuration Support
Every large opening project has different installation conditions exposure,e and structural requirements.
NewHoo can help match the suitable width division, guide rail configuration, fabric type, and control system according to your actual project needs.
This helps avoid over-sizing or under-sizing the system and ensures the product fits the installation environment properly.
Send us your opening width, height, installation photos, or drawings.
Our team can help recommend the right WR120-140 configuration based on your project size, wind conditions, and installation requirements.
