WR96-100 Indoor Zipper-Guided Roller Blind
Product Brief
NewHoo WR96-100 Indoor Zipper-Guided Roller Blind is designed for indoor projects that require a compact cassette design, guided fabric control, and multiple operating options.
The system uses a 96/100 mm compact cassette, a card-in mounting seat, a three-piece side rail structure, and a small zipper guide rail. The zipper edges on the fabric work together with the side guide rails, helping the fabric stay aligned during raising and lowering.
WR96-100 includes A-type and B-type configurations. WR96-100A supports motorized, spring hand-push, and bead chain operation, while WR96-100B is configured as a motorized indoor guided blind. This makes the series suitable for hotels, homes, offices, and medium/small indoor shading projects.
96/100 mm Compact Cassette
WR96-100 uses a compact cassette structure suitable for indoor installation.
The cassette keeps the roller tube and fabric covered when retracted, creating a neat appearance for hotels, residential spaces, offices, and interior window projects. The profile drawing shows an approximate 95 × 100 mm cassette section, while the product series is generally described as a 96/100 mm cassette system.
A/B Type Configuration
WR96-100 is available in two structural options: WR96-100AandWR96-100B.
WR96-100A provides more operational flexibility, including motorized, spring hand-push, and bead chain configurations. WR96-100B is used for motorized indoor projects with a 63 thin tube and WR96-100B light bottom rail.
This A/B structure allows the product to match different indoor project requirements without using one fixed configuration for all openings.
Card-In Mounting Seat
WR96-100 uses a card-in mounting seat structure for installation.
This design helps simplify assembly and positioning, making the blind more suitable for project installation where consistency and installation efficiency are important.
Three-Piece Side Rail System
The three-piece side rail system supports compact indoor installation and guided fabric operation.
This structure is suitable for indoor projects where the side rail needs to remain neat while still keeping the fabric controlled inside the guide system.
Small Zipper Guide Rail
WR96-100 uses a small zipper guide rail to control the fabric edge during operation.
The zipper edge on the fabric enters the guide rail during raising and lowering, helping the blind maintain better side alignment and a cleaner shading effect compared with free-hanging roller blinds.
Small Metal Zipper Guide Rail Port
The system uses a small metal guide rail port at the zipper guide area.
This helps improve guide rail durability and supports smoother fabric entry into the rail, especially for indoor projects where long-term operation and fabric alignment are important.
Multiple Operation Options
WR96-100A supports motorized operation, spring hand-push operation, and bead chain operation.
Motorized operation is suitable for hotels, homes, offices, and smart indoor shading projects. Spring hand-push and bead chain options are suitable for medium/small indoor openings, lower-height applications, and locations without a power supply.
WR96-100B is configured for motorized operation according to the specification table.
Optional T-Tape for Special Fabrics
For certain special fabrics, WR96-100 can use an optional T-tape guided configuration.
This option helps improve fabric flatness and can be selected when the fabric surface effect is an important project requirement.
Heavy Bottom Rail Recommendation for Narrow Openings
When the opening width is less than 1 m and the height is greater than 1.5 m, an extra-heavy bottom rail is recommended.
This helps improve downward movement and makes the blind operate more smoothly in narrow and taller indoor window applications.
Technical Specifications
| Type | Tube | Width Range | Max Height | Operation | Drive System | Bottom Rail | Minimum Width |
|---|---|---|---|---|---|---|---|
| WR96-100A | 63 thick tube | 0.4–3.8 m | 3 m | Motorized | 45 tubular motor, 20 Nm | Light bottom rail | 0.4 m |
| WR96-100A | 70 tube | 0.7–4 m | 2.6 m | Spring hand-push | Standard spring | Easy-pull bottom rail | 0.7 m |
| WR96-100A | 63 thin tube | 0.4–3 m | 3 m | Bead chain | WR100-K65 bead-chain control head | Light bottom rail | 0.4 m |
| WR96-100B | 63 thin tube | 0.7–3.8 m | 3 m | Motorized | 45 tubular motor, 20 Nm | WR96-100B light bottom rail | 0.7 m |
For WR96-100 projects, the final configuration should be selected according to opening width, height, operation method, tube type, and bottom rail requirement.
WR96-100A is suitable when multiple operation methods are needed within one product series. WR96-100B is suitable for motorized indoor guided blind projects that use 63 thin tube and WR96-100B light bottom rail.

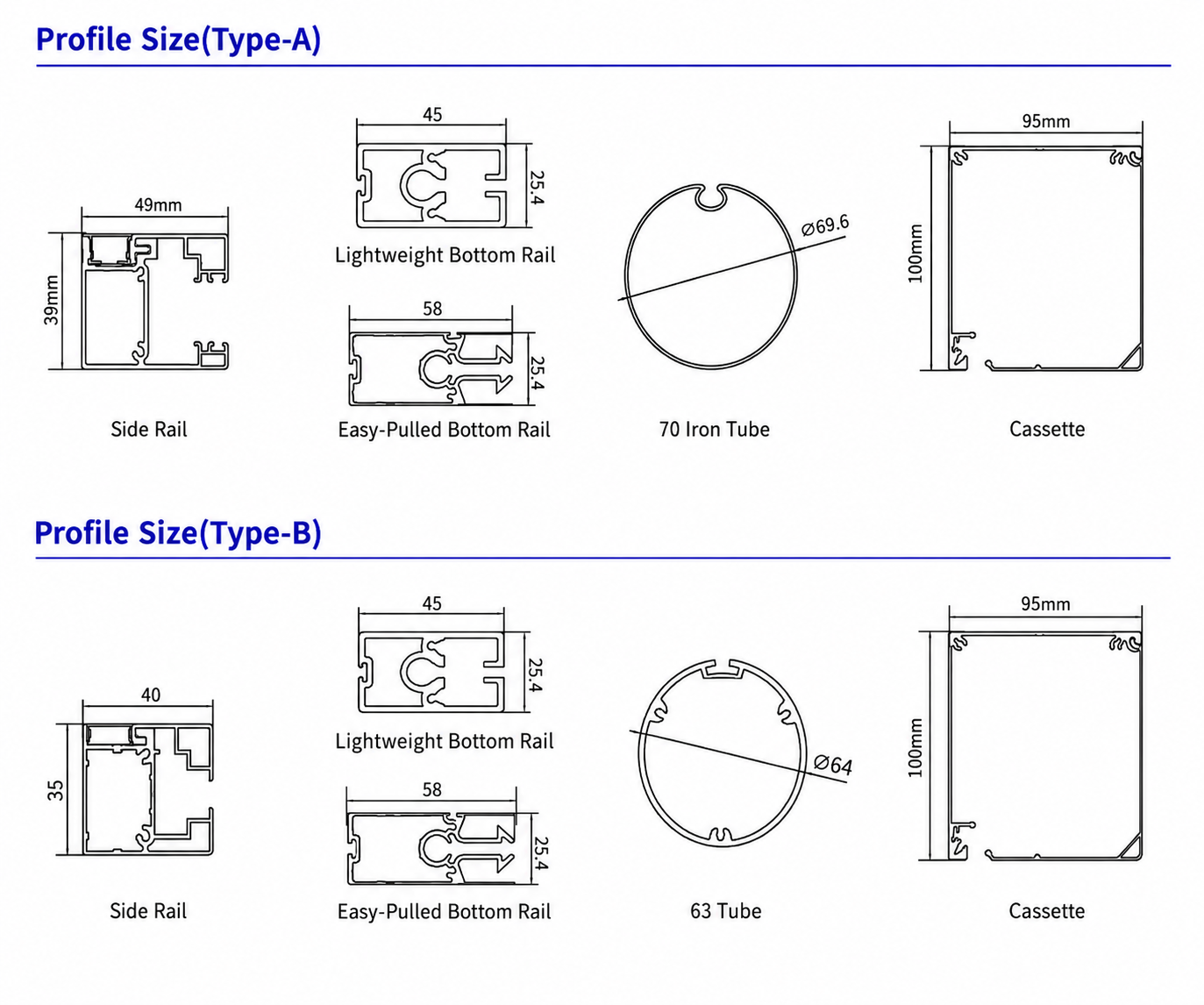

Profile Structure

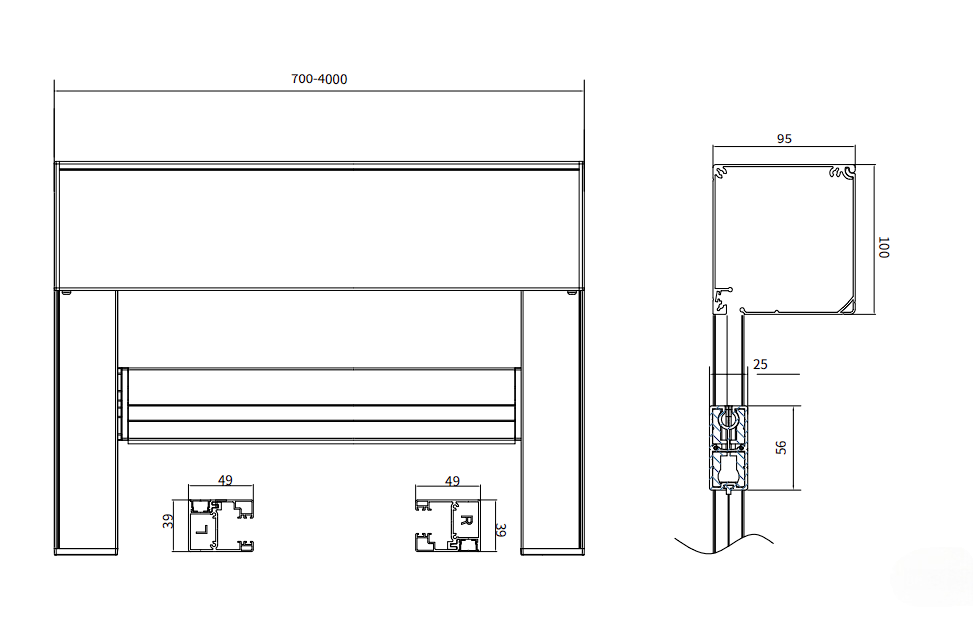

WR96-100 uses a compact cassette and side rail structure for indoor guided roller blind applications. The profile drawing shows a cassette section of about 95 × 100 mm, while the product series is generally described as a 96/100 mm cassette system.
The structure includes a light bottom rail and an easy-pull bottom rail option according to the selected operation method. For project selection, the profile structure should be matched with the tube, bottom rail, and operation configuration shown in the specification table.
Indoor Fabric & Appearance Options
WR96-100 fabric selection should focus on indoor privacy, glare control, shading level, and fabric flatness.
For hotels, homes, and office projects, fabrics can be selected according to daylight control, privacy needs, and interior design style. When special fabrics are used, the optional T-tape configuration can help improve the finished fabric surface.
Profile colors can be matched with window frames, interior partitions, aluminum structures, and room design requirements. The operation method should be selected according to power conditions, opening size, and daily-use preference.
Recommended Applications
WR96-100 is suitable for medium and small indoor shading projects that need guided fabric movement and a compact cassette appearance.
Typical applications include hotels, homes, offices, apartments, meeting rooms, indoor partitions, enclosed balcony windows, and aluminum frame structures.
For B2B projects, WR96-100 is suitable where different rooms or openings require different operation methods, such as motorized control for hotel or office areas and manual operation for smaller indoor windows.
