C28-WR100B Indoor Zipper-Guided Roller Blind
Product Brief
NewHoo C28-WR100B Indoor Zipper-Guided Roller Blind is designed for indoor projects that need a larger guided blind solution without using an oversized structure.

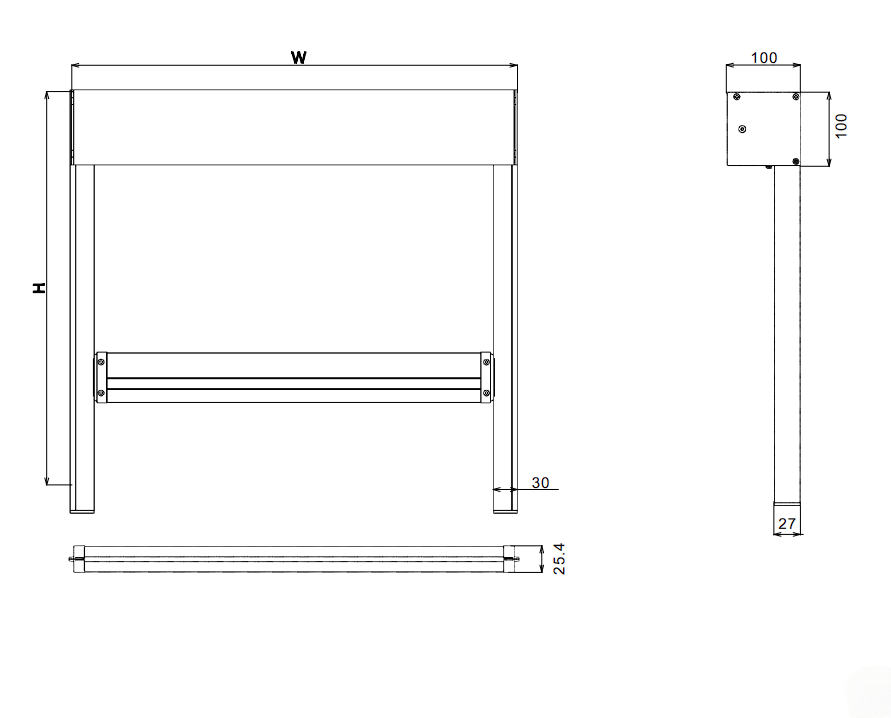

With a 100 × 100 mm cassette, 27 × 30 mm mini side rails and grooved roller tube options, C28-WR100B is suitable for office interiors, enclosed balconies, commercial buildings, hotels and engineering shading projects where fabric guidance, clean appearance and configuration stability are important.
The system supports motorized operation and spring hand-push operation. For motorized configurations, the width can reach up to 4 m, with the final height depending on the selected motor and roller tube.

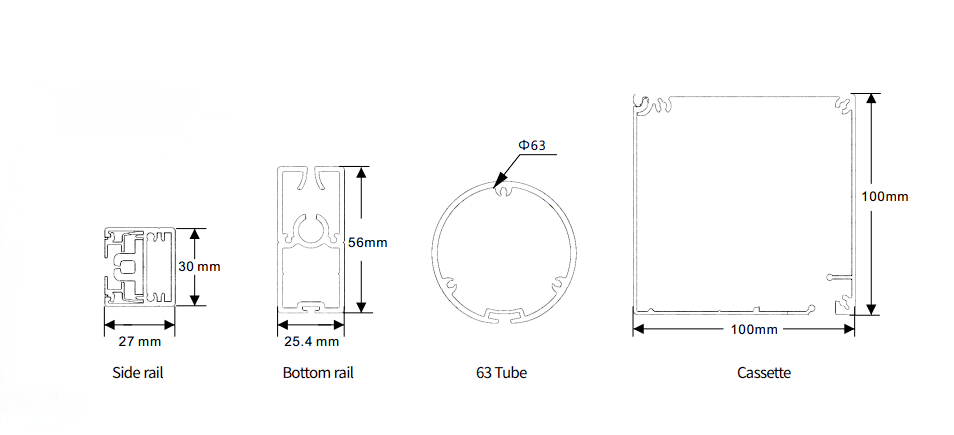

100 × 100 mm Cassette for Larger Indoor Openings
C28-WR100B uses a 100 × 100 mm cassette, providing more internal space for stronger indoor guided blind configurations while keeping a compact square appearance
This makes it suitable for indoor projects where standard small cassette systems may not provide enough configuration capacity, but the installation still needs to look clean and refined.
27 × 30 mm Mini Side Rails
The 27 × 30 mm side rails help keep the side structure compact, making the system easier to apply in offices, enclosed balconies, aluminum frame structures, and commercial interiors.
The side rail works with the zipper edge on the fabric to keep the blind guided during operation, improving side alignment and reducing fabric movement compared with free-hanging roller blinds.

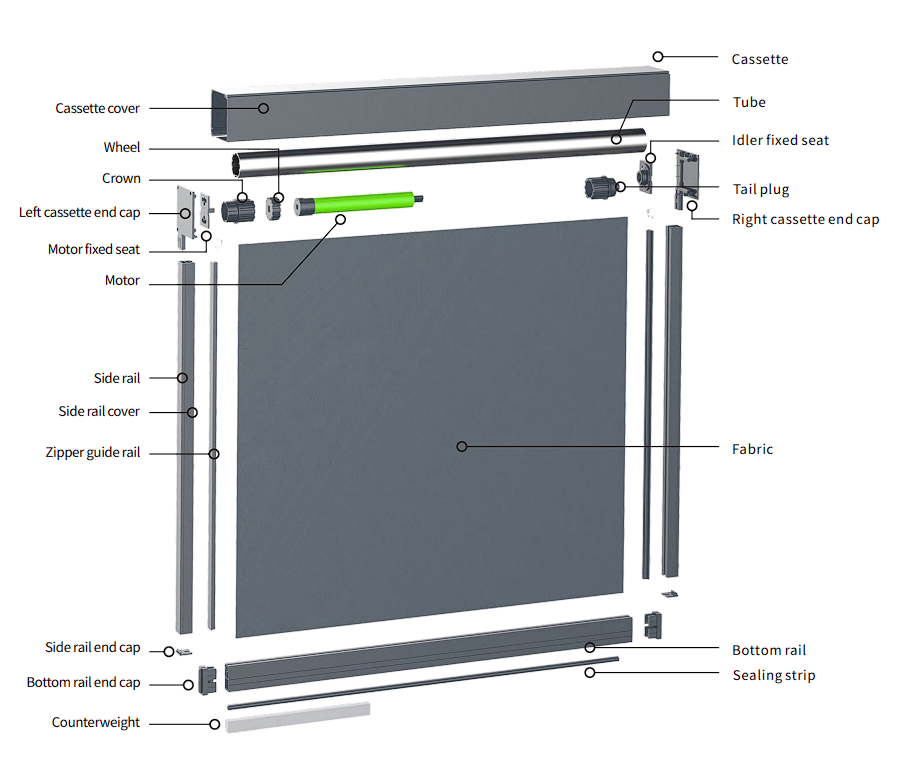

Steel Plate End Caps and Integrated Mounting Seat
C28-WR100B uses steel plate end caps and an integrated steel mounting seat.
This structure improves fixing strength and supports easier installation, which is useful for engineering projects where installation stability and repeated project delivery are important.
Grooved Roller Tube Options
C28-WR100B can be configured with 55 mm, 63 m,m or 70 mm grooved roller tubes according to opening size and motor selection.
The 63 mm tube is a key option for wider indoor guided blind applications. The 55 mm tube can be used for selected motorized configurations requiring higher height support, while the 70 mm tube can be selected when stronger tube support is needed.
C31 Heavy-Duty Bottom Rail
C28-WR100B can be matched with a C31 heavy-duty bottom rail for motorized configurations.
The added bottom weight helps improve fabric tension and smoother lifting, especially for larger indoor openings within the recommended configuration range.
Motorized or Spring Hand-Push Operation
C28-WR100B supports two operation methods:
- Motorized operation for projects that need electric control and stable daily use
- Spring hand-push operation for projects that prefer clean manual operation without exposed bead-chain control
The final operation method should be selected according to opening size, power conditions, and daily-use requirements.
Technical Specifications
| Category | Width Range | Drive System | Tube | Bottom Rail | Max Height | Minimum Width |
|---|---|---|---|---|---|---|
| Motorized | Width< 3 m | 38 tubular motor AM35-10/17, 10 Nm | 55 mm tube | C31 heavy-duty bottom rail | 4.8 m | 0.76 m |
| Motorized | Width< 3 m | 38 tubular motor AM35-10/17, 10 Nm | 63 mm tube | C31 heavy-duty bottom rail | 3.8 m | 0.76 m |
| Motorized | Width< 3 m | 45 tubular motor, 20–30 Nm | 63 mm tube | C31 heavy-duty bottom rail | 3.8 m | 0.8 m |
| Motorized | Width< 3 m | 45 tubular motor, 20–30 Nm | 70 mm tube | C31 heavy-duty bottom rail | 3.0 m | 0.8 m |
| Motorized | 3 m < Width < 4 m | 45 tubular motor, 20–30 Nm | 63 mm tube | C31 heavy-duty bottom rail | 3.8 m | 0.8 m |
| Motorized | 3 m < Width < 4 m | 45 tubular motor, 20–30 Nm | 70 mm tube | C31 heavy-duty bottom rail | 3.0 m | 0.8 m |
| Spring Hand-Push | Width< 3 m | T1001 spring system | 63 mm tube | — | 2.5 m | 1.2 m |
| Spring Hand-Push | 3 m < Width < 4 m | T1001 spring lock control head | 63 mm tube | — | 2.5 m | 1.2 m |
For C28-WR100B projects, the motor, tube, and operation method should be selected according to the actual opening width and height.
For widths below 3 m, multiple motorized tube options can be selected according to height requirements. For widths between 3 m and 4 m, the 45 tubular motor with a 63 mm or 70 mm tube is recommended. For spring hand-push configurations, the recommended maximum height is 2.5 m according to the specification table.
Fabric, Color & Operation Selection
C28-WR100B can be customized according to fabric type, profile color, and operation method.
For indoor engineering projects, fabric selection should consider privacy, glare control, shading level,a nd fabric stability. Profile colors can be matched with aluminum frames, office interiors, hotel spac,es or enclosed balcony structures.
For projects requiring larger sizes or higher daily-use frequency, motorized operation is usually more suitable. For spaces where wiring is not preferred, the spring hand-push version provides a clean manual alternative.
Recommended Applications
C28-WR100B is suitable for indoor guided roller blind projects that need a larger size range and stronger configuration capacity than compact indoor models.
Typical applications include office interiors, commercial buildings, enclosed balconies, meeting rooms, hotels, aluminum frame structures, and engineering shading projects.
For B2B projects, C28-WR100B is especially suitable where indoor openings require a compact side rail, 100 mm cassette, and flexible motorized or spring hand-push configuration.
