WR86-95 Indoor Guided Roller Blind
Product Brief
NewHoo WR86-95 Indoor Zipper-Guided Roller Blind is designed for indoor small and medium window shading projects that need compact structure, guided fabric movement, and flexible control options.

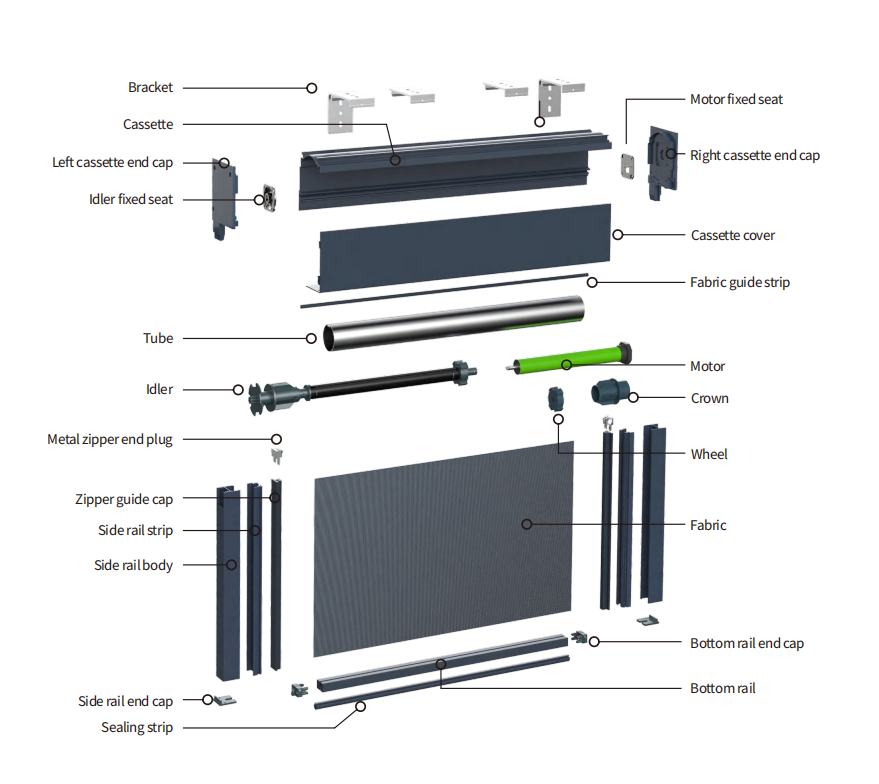

The system uses an 86 × 95 mm compact cassette, a 43 mm roller tube, a small zipper guide rail, and a 30 × 35 mm side rail structure. The side rails work together with the zipper edges on the fabric to form a zipper-guided system, helping the fabric stay aligned during raising and lowering.
WR86-95 is mainly used for indoor installations and is suitable for openings within 2.5 m in width and under 3 m in height. It supports motorized operation, spring hand-push operation, and bead chain operation for different indoor project requirements.
86 × 95 mm Compact Cassette
WR86-95 uses an 86 × 95 mm cassette system with a compact and refined appearance.
The cassette helps cover the roller tube and fabric when retracted, keeping the top structure neat for indoor windows, office interiors, hotel rooms, apartments, and residential projects.

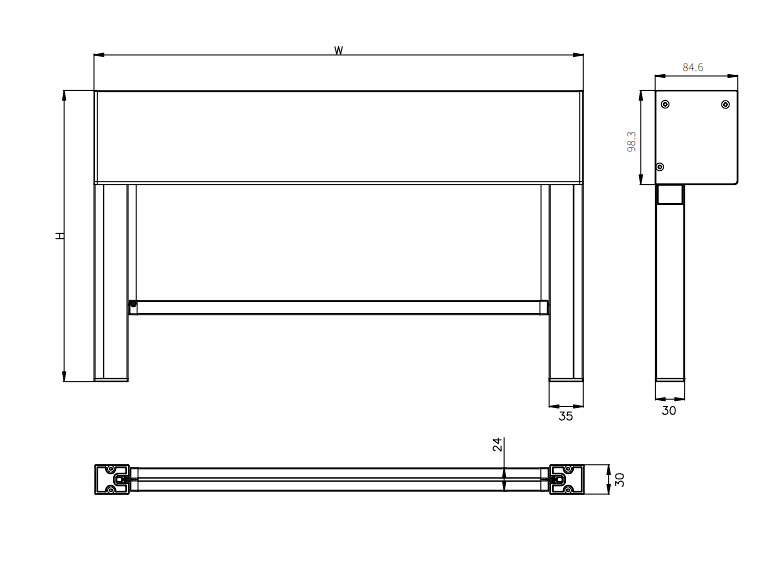

According to the profile structure, the cassette section is approximately 84.6 × 98.3 mm, suitable for indoor projects that need a compact cassette with guided fabric control.
Zipper-Guided Fabric Control
WR86-95 uses a zipper-guided structure formed by the side rails and the zipper edges on both sides of the fabric.
During raising and lowering, the fabric remains guided inside the side rails, helping reduce side gaps and keeping the blind closely aligned around the window opening. This provides better fabric control than a free-hanging indoor roller blind.
30 × 35 mm Compact Side Rail
WR86-95 uses a compact side rail structure, with the profile drawing showing a 35 × 30 mm side rail section.
The small side rail size makes the system suitable for indoor windows, aluminum frame structures, enclosed balconie, s and interior projects where side installation space is limited.
43 mm Roller Tube
WR86-95 uses a 43 mm roller tube for compact indoor roller blind configurations.
This tube size works with the 86 × 95 mm cassette structure and supports motorized manual-guided blind applications within the recommended indoor size range.
Multiple Operation Options
WR86-95 supports three indoor operation methods:
- Motorized operation
- Spring hand-push operation
- Bead chain operation
Motorized operation is suitable for indoor projects that require electric control and convenient daily use. Spring hand-push operation is suitable for windows where clean manual control is preferred. Bead chain operation provides a compact manual option for smaller openings and cost-sensitive projects.
25 Tubular AC Motor for Motorized Configuration
For motorized WR86-95 configurations, the system uses a 25 tubular AC motor, 1.2 Nm, with a 43 mm roller tube.
This configuration is suitable for compact indoor installations where electric control is needed within a small cassette structure.
Bead Chain Control Head
For bead chain operation, WR86-95 uses a bead chain control head with a 43 mm roller tube.
This provides a simple manual control option for indoor projects, especially where a compact, cost-effective guided roller blind is required.
Reinforced End Cap Assembly
WR86-95 uses an end cap assembly made with die-cast aluminum alloy, PA6,6, and 30% glass fiber reinforced material.
The drive head and motor fixing structure use metal round plates, while the tail side uses a self-locking tail component. This helps improve structural stability for daily indoor operation.
Bottom Rail Options
WR86-95 uses a dedicated bottom rail assembly to help keep the fabric lower edge aligned during operation.

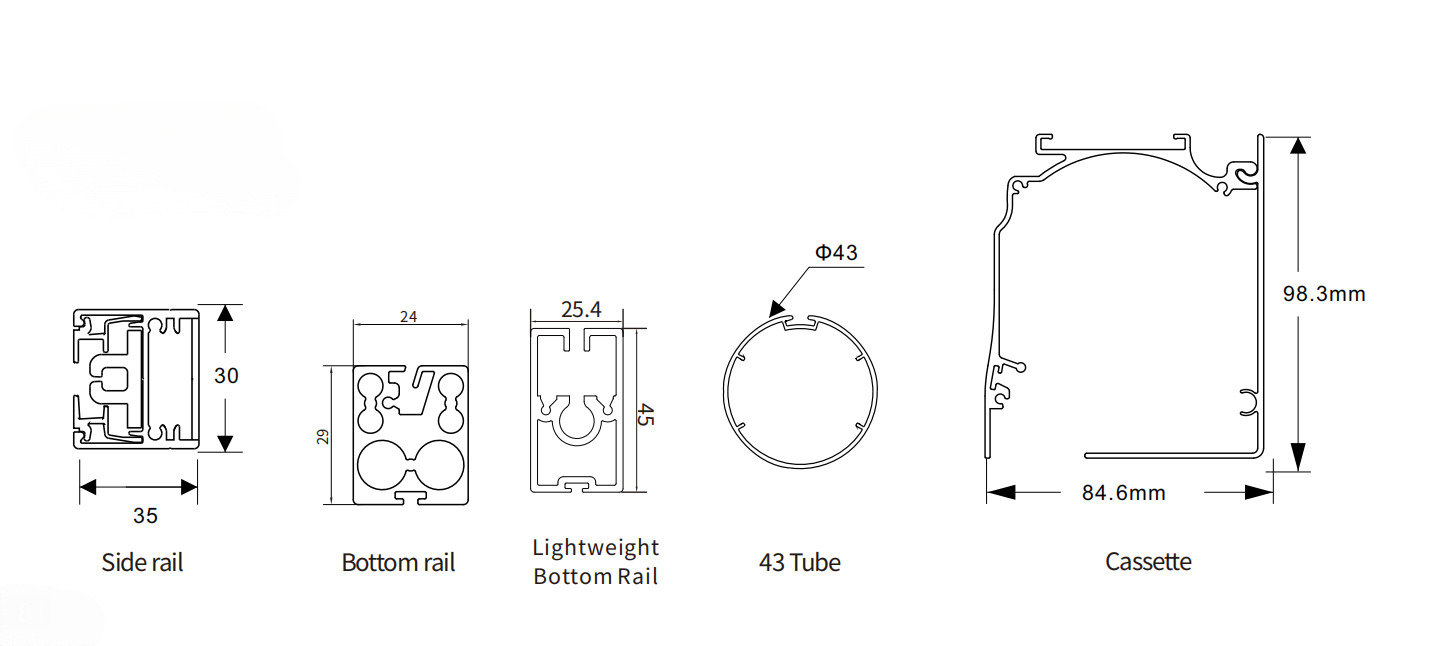

According to the profile drawing, the bottom rail options include:
- Standard bottom rail: about 24 × 29 mm
- Light bottom rail: about 25.4 × 45 mm
The bottom rail helps improve fabric tension, lower-edge alignment, and overall finished appearance.
Optional T-Tape for Special Fabrics
For certain special fabrics, WR86-95 can use an optional T-tape guided configuration.
This option helps improve fabric flatness and is suitable when the selected fabric needs additional guidance support to achieve a cleaner surface effect.
Technical Specifications
| Operation | Drive System | Roller Tube | Bottom Rail | Max Height | Width Range | Minimum Width |
|---|---|---|---|---|---|---|
| Motorized | 25 tubular AC motor, 1.2 Nm | 43 mm tube | WR86/95 bottom rail assembly | < 3 m | < 2.5 m | 0.6 m |
| Bead Chain | Bead chain control head | 43 mm tube | WR86/95 bottom rail assembly | < 3 m | < 2.5 m | 0.35 m |
For WR86-95 projects, motorized and bead chain configurations should be selected according to opening size, fabric type, installation position and operation requirements.
Operation Configuration
WR86-95 can be selected according to different indoor project needs.
Motorized operation is suitable for office buildings, hotels, apartments and interior projects where electric control is preferred.
Spring hand-push operation is suitable for indoor windows that need a clean manual control method without exposed bead chain operation.
Bead chain operation is suitable for smaller indoor openings or projects that need a simple manual control method with lower configuration cost.
Indoor Fabric & Appearance Options
WR86-95 fabric selection should focus on privacy, glare control, shading level and fabric flatness.
For offices, hotels, apartments and indoor window projects, fabrics can be selected according to daylight control, privacy needs and interior appearance. For special fabrics, the optional T-tape configuration can help improve the fabric surface effect.
Profile colors can be matched with window frames, aluminum structures, interior partitions and room design styles. The operation method should be selected according to power conditions, project budget and user preference.
Recommended Applications
WR86-95 is suitable for indoor small and medium guided roller blind projects that need compact structure and flexible operation options.
Typical applications include office windows, hotel rooms, apartments, meeting rooms, interior partitions, enclosed balcony windows and indoor aluminum frame structures.
For B2B projects, WR86-95 is especially suitable where one indoor guided blind series needs to cover motorized, spring hand-push and bead chain operation requirements
