WR150-230 Double-Layer Motorized Windproof Roller Blinds

Large-Size Double-Layer Outdoor Blinds for Wide Openings

WR150-230 is a large-size double-layer motorized windproof roller blind system designed for wide and tall outdoor openings. It combines two independently controlled fabric layers in one system, helping outdoor spaces achieve flexible sunlight control, privacy protection, glare reduction, and stronger shading performance.

Unlike a standard single-layer outdoor blind, WR150-230 is designed for projects that need more than one shading mode. One fabric layer can be used for daylight control and outward visibility, while the other layer can provide stronger privacy or darker shading when needed. This makes the system especially suitable for balconies, terraces, sunrooms, hotel outdoor areas, restaurant façades and commercial shading projects.

Designed for Outdoor Spaces That Need More Than Basic Shading

In many outdoor projects, the problem is not only sunlight. A balcony may need natural daylight during the day but more privacy at night. A restaurant terrace may need soft shading in the morning and stronger sun protection in the afternoon. A sunroom may need glare reduction without making the space feel completely closed.

WR150-230 is designed for these changing outdoor conditions. Its double-layer structure allows one system to provide different levels of shading, privacy and visibility within the same opening. Compared with installing an on-site single-layer blind, this gives project owners and users more flexibility in daily use.

For dealers, contractors, and project buyers, WR150-230 also provides a cleaner solution for large openings. Instead of using separate shading products for different needs, the double-layer system integrates two fabric functions into one structure, making the final installation more organized and professional.

Double-Layer Shading for Flexible Outdoor Control

The key advantage of WR150-230 is its double-layer shading function. Outdoor spaces often face different light and privacy needs throughout the day, and one fabric layer is not always enough to handle every situation.

With WR150-230, the first layer can be selected for daylight control, ventilation feelin,g and outward visibility. The second layer can be selected for stronger privacy, deeper shadi, ng or better glare reduction. This allows the same outdoor opening to respond to different usage needs without changing the whole blind system.

For example, screen fabric can be used during the day to reduce sunlight while keeping a view of the outside. When stronger privacy or darker shading is needed, a dim-out or blackout fabric layer can be lowered separately. This is the real value of the double-layer design: it gives users more control instead of forcing them to choose only one fixed shading effect.

Dual Motors for Independent Fabric Layer Control

WR150-230 uses two motors, with each motor controlling one fabric layer independently. The two fabric layers do not have to move together. Users can operate either layer according to sunlight, privacy, and comfort needs.

This independent control makes WR150-230 more flexible than ordinary single-layer outdoor blinds. In the morning, users may only need light glare control. In the afternoon, they may need stronger heat and sun protection. At night, privacy may become the main requirement. With two independently operated layers, one blind system can support these different situations more effectively.

For project applications, this is especially useful in hotels, restaurants, villas,s and commercial buildings, where different users may have different expectations for light, visibility, ty and privacy at different times of the day.

Fabric Combinations for Different Shading Modes

WR150-230 is not limited to one fixed fabric combination. Each fabric layer can be selected according to the actual project requirement. This makes the system more adaptable for outdoor spaces with mixed needs.

A common combination is screen fabric plus dim-out fabric. The screen layer helps reduce glare and sunlight while keeping a certain level of outward visibility. The dim-out layer provides softer shading and better privacy when the space needs more comfort. For projects that require stronger light blocking, blackout fabric can also be used as one of the fabric layers.

This fabric flexibility allows WR150-230 to meet different requirements for sunlight control, privacy protection, heat reduction, glare control, and building appearance. It is especially suitable for large outdoor spaces where one shading effect is not enough for the whole day.

Built for Wide and Tall Outdoor Openings

WR150-230 is also designed for large-sized outdoor applications. Standard outdoor roller blinds may be limited when the opening becomes too wide, too talll or exposed to stronger outdoor conditions. WR150-230 provides a heavier-duty system structure for projects that require wider coverage and more stable operation.

For large terraces, high balconies, sunro, oms and commercial façades, size stability is often one of the first concerns during product selection. WR150-230 gives project buyers a more suitable option when the opening goes beyond the comfortable range of ordinary outdoor blind systems.

The system can be matched with different roller tube configurations according to opening width, height, fabric weight,ight and installation environment. For controlled width and height applications, the 63 mm roller tube can be used. For wider or taller projects, especially openings above 5 m in width or above 3.5 m in height, the 78 mm double-layer roller tube provides stronger support for larger spans.

Zip-Guided Side Rails for Fabric Stability

For large-sized double-layer outdoor blinds, fabric stability is very important. WR150-230 uses zip-guided side rails to guide the fabric edges during operation, helping reduce fabric sway and improve alignment.

This guided structure keeps the fabric more stable in outdoor environments and helps the blind maintain a cleaner appearance after installation. For wide and tall openings, this is especially important because larger fabric panels are more easily affected by movement,windn,d and daily operation.

The side rail system also helps create a more complete shading effect by keeping the fabric edges controlled. This makes WR150-230 more suitable for outdoor spaces that need bextensivecoverage and reliable fabric movement.

Easier Installation and Maintenance for Project Use

WR150-230 uses an upper and lower double-layer layout, which makes installation, inspection, and maintenance more convenient forlarge-sizede projects. This structure is especially valuable for dealers, contractors,s and project installers who need to consider both the first installation and future service access.

Large outdoor blind systems are not only about appearance. Maintenance convenience can directly affect long-term project satisfaction. A clearer double-layer layout helps reduce service difficulty and makes the system more practical for engineering,commerciali ,al and high-end residential applications.

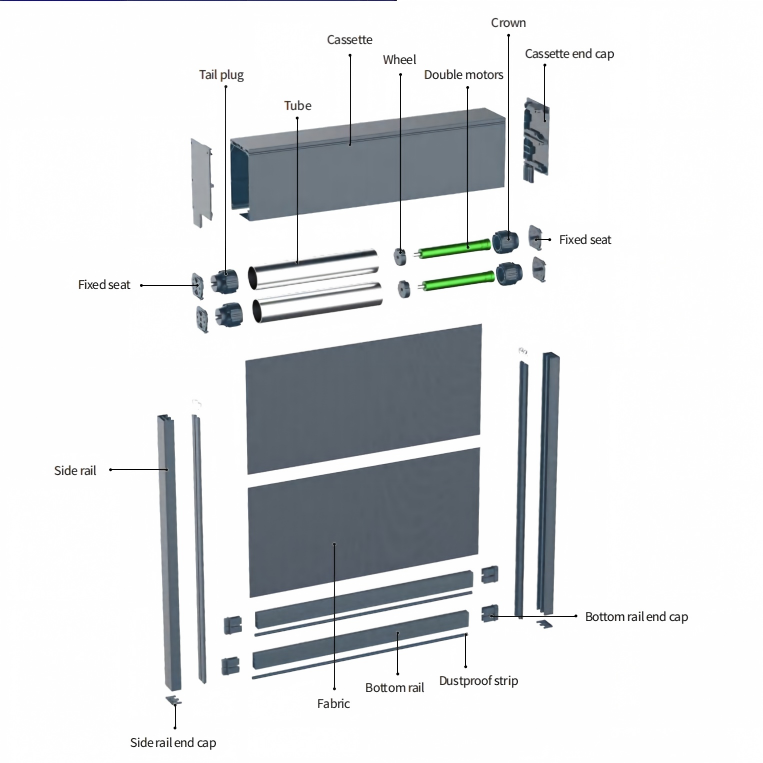

 System Structure

WR150-230 combines a large cassette system, dual motor drive, selectable fabric layers, zip-guided siderailss and matched bottom rail dimensions to support large outdoor shading applications.

The roller tube configuration can be selected according to the opening width, height, fabric weight, and installation conditions. The bottom rail is matched according to project size and fabric configuration, while top mounting is available for suitable site conditions.

Main system features include:

• Large-size double-layer cassette structure
• Two independently controlled motorized fabric layers
• Selectable fabric combinations
• Zip-guided side rail system
• 63 mm roller tube and 78 mm double-layer roller tube options
• Bottom rail matched by project dimensions
• Top mounting option for suitable installation conditions

Final configuration should always be confirmed according to the actual opening size, fabric type, wind environment, installation method, and project requirements.

Size and Configuration Reference

WR150-230 is configured according to real project data rather than one fixed specification. The final solution should be matched based on opening width, height, fabric weight, wind exposure,e and installation conditions.

For projects with controlled width and height requirements, the 63 mm roller tube can be used as a suitable option. It is suitable for applications such as openings up to about 3.8 m wide and 5 m high, depending on fabric and site conditions.

For wider or taller openings, the 78 mm double-layer roller tube is recommended. It provides stronger support for larger spans and is suitable for projects above 5 m in width or above 3.5 m in height.

For projects that require two different shading modes in one opening, the dual-motor system allows each fabric layer to operate separately. For outdoor spaces exposed to sunlight and wind, the zip-guided side rails help improve fabric stability. For selected project structures, top mounting can also be used.

Because outdoor shading projects are affected by many site conditions, NewHoo recommends confirming the final motor, tube, fabric, and side rail configuration based on project drawings, installation photos,s and actual measurements.

Fabric Options

Different outdoor spaces require different levels of sunlight control, privacy, and visibility. WR150-230 allows fabric selection to be matched with the actual use environment instead of using one fixed fabric solution for all projects.

Screen fabric is suitable for balconies, terraces, restaurants,s and outdoor areas where users want to reduce glare while still keeping daylight and outward visibility. It works well as the first layer in the double-layer system because it helps create a more open and comfortable daytime environment.

Dim-out fabric is suitable for spaces that need softer shading and improved privacy, such as hotel outdoor areas, residential terrace s and semi-outdoor leisure spaces. It can be used as the second layer to provide a more private and shaded environment when needed.

Blackout fabric is suitable for projects that require stronger light blocking, better privacy, or higher glare reduction. For outdoor spaces exposed to strong afternoon sun or areas that need deeper shading, blackout fabric can give the double-layer system stronger performance.

Fabric colors can also be customized to match different building façades, outdoor furniture styles and project design requirements. This helps the blind system blend better with the overall appearance of the building.

Application Scenarios

WR150-230 is suitable for wide balcony openings where privacy, sunlightcontrolo,l and fabric stability are important. During the day, one layer can help reduce glare while keeping the outdoor view. At night, the second layer can provide stronger privacy.

For terraces and semi-outdoor dining areas, the double-layer system helps improve comfort at different times of day. Users can choose lighter shading when they want a more open feeling, or stronger shading when the sun becomes intense.

For sunrooms and glass-covered spaces, WR150-230 helps manage strong sunlight without making the space feel permanently closed. The two fabric layers give users more control over daylight,glaree and privacy.

In hotel outdoor areas, the system can support shaded lounges, leisure areas, and guest seating spaces. For restaurants, it helps improve outdoor dining comfort while keeping the exterior appearance neat and integrated.

The system is also suitable for commercial buildings, large glass openings,s and façade shading projects where size, appearan,ce and long-term stability all need to be considered. For villa and premium residential projects, WR150-230 provides a large-sized motorized shading solution with flexible fabric combinations and cleaner integration.

Why Choose NewHoo WR150-230?

WR150-230 is designed for large outdoor openings that need more than one shading function. Its double-layer motorized structure allows one system to provide daylight control, privacy protection, glare reductio,n and stronger shading performance.

For dealers, contracto,rs and project buyers, this means the product can meet more complex project needs without relying on a basic single-layer blind. The two independently controlled fabric layers make WR150-230 more flexible for balconies, terraces, sunrooms, hotels, restaura,nts and commercial façades.

Combined with zip-guided side rails, roller tube options and project-based configuration support, WR150-230 provides a professional solution for large outdoor spaces that need both size coverage and flexible shading control.

Custom Project Support

Every outdoor shading project has different requirements. Opening size, installation position, fabric weight, wind expo,sure and mounting conditions all affect the final configuration.

NewHoo can help recommend a suitable WR150-230 solution based on your project information. To receive a more accurate configuration, please provide the opening width and height, installation location, mounting method, required fabric combination, wind environment, project photos or drawings, qua,ntity and application area.

Based on this information, NewHoo can help match the motor, roller tube, fabric, sid,e rail and installation solution for your project.
