WR130-180 Dual-Layer Indoor Guided Blind
Product Overview
NewHoo WR130-180 is designed for indoor projects where a single window requires more than one shading mode.
By integrating two fabric layers inside a 130 × 180 mm cassette, the system allows users to switch between daylight filtering, privacy control, and stronger room-darkening effects according to different times of day.
This makes WR130-180 suitable for hotels, bedrooms, offices, and meeting rooms where lighting, privacy, and interior appearance need to be managed within one clean installation.
Dual-Fabric Shading in One Cassette

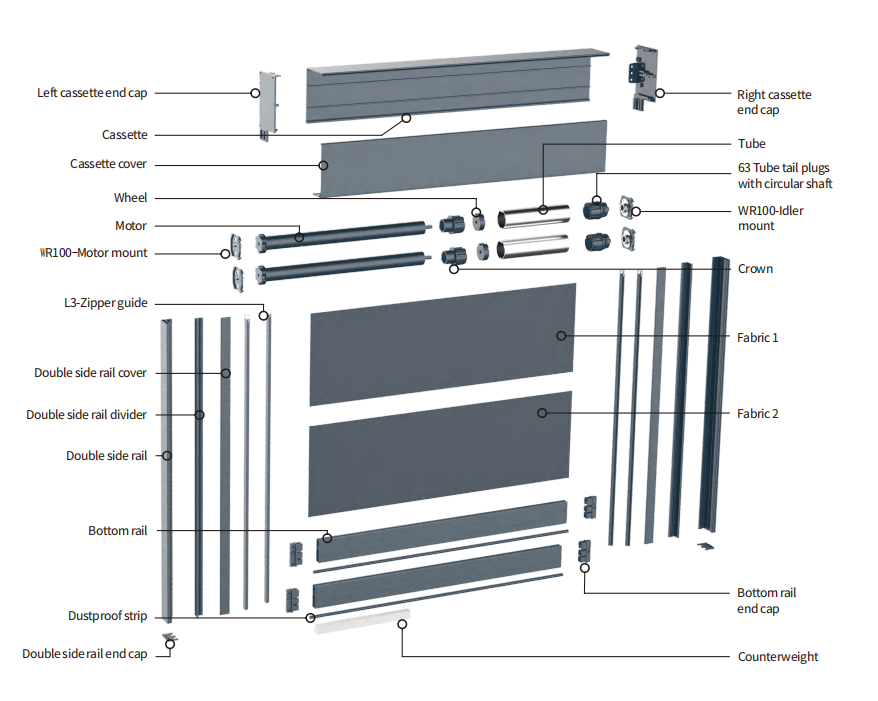

WR130-180 combines two fabric layers in one cassette instead of requiring two separate blind systems.
This helps keep the window area cleaner while giving users more control over light and privacy. For hotel rooms, bedro, oms and office spaces, the system can support different daily-use needs without adding extra visible structures.
Custom Fabric Combinations for Different Light Levels
The two fabric layers can be selected according to project requirements.
For example, one layer can use a light-filtering or screen fabric for daytime glare reduction, while the other layer can use a blackout or privacy fabric for stronger light blocking and privacy.
This gives the project more flexibility than a fixed single-fabric blind.
Side Clip Dual-Track Structure
WR130-180 uses a side-clip dual-track structure to guide the two fabric layers separately.
This helps each fabric layer run in its own track, reducing interference between the two layers and making operation more stable during daily use.
For customers, this means the system can switch between different fabric layers more smoothly.
Guided Side Rail for Better Side Coverage
The 35 × 60 mm guided side rail helps keep the fabric aligned inside the track.
For indoor spaces that need privacy or room-darkening performance, side coverage is important. The guided structure helps reduce side light gaps and improves the finished shading effect compared with a free-hanging roller blind.

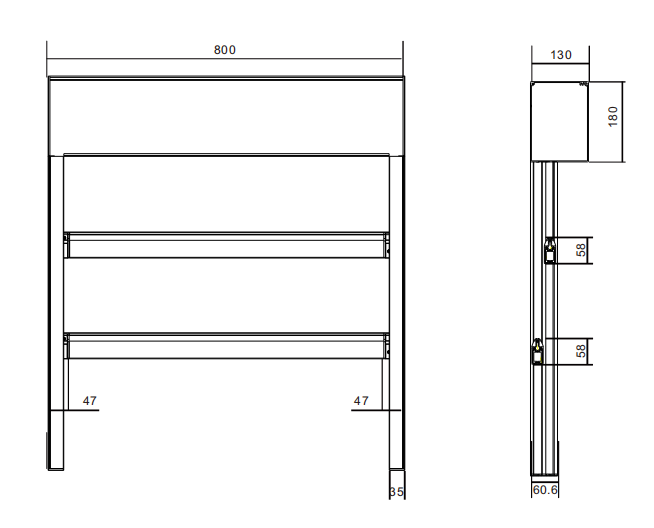

130 × 180 mm Cassette for Dual-Layer Integration
The 130 × 180 mm cassette provides enough internal space for two fabric layers and their operating structure.
By integrating both layers inside one cassette, WR130-180 helps create a neater installation than placing two separate blind systems around the same window.
63 mm Tube for Medium Indoor Openings
WR130-180 uses a 63 mm grooved tube for stable dual-layer operation.
The system is suitable for medium indoor openings, with configurations supporting widths up to 4 m and heights selected according to the drive system and tube configuration.
Motorized or Spring Hand-Push Operation
WR130-180 supports motorized operation and spring hand-push operation.
Motorized operation is suitable for hotels, offices, and smart indoor projects where remote or automated control may be required. Spring hand-push operation is suitable for indoor spaces without a power supply or where clean manual control is preferred.
Technical Specifications
| Width Range | Operation | Drive System | Tube | Bottom Rail | Max Height | Minimum Width |
|---|---|---|---|---|---|---|
| Width< 2.5 m | Motorized | 38 tubular motor AM35-10/17, 10 Nm | 55 / 63 mm tube | Heavy-duty easy-pull bottom rail | 5 m / 3.5 m | 0.76 m |
| Width< 2.5 m | Motorized | 45 tubular motor, 20–30 Nm | 63 mm tube | Heavy-duty easy-pull bottom rail | 3.5 m | 0.8 m |
| 3 m < Width < 4 m | Motorized | 45 tubular motor, 20–30 Nm | 63 mm tube | Heavy-duty easy-pull bottom rail | 3.5 m | 0.8 m |
| Width< 2.5 m | Spring Hand-Push | T100 spring control head | 63 mm tube | Easy-pull bottom rail | Height to be confirmed by the project | 0.8 m |
| 3 m < Width < 4 m | Spring Hand-Push | T100 spring control head | 63 mm tube | Easy-pull bottom rail | Height to be confirmed by the project | 0.8 m |
For spring hand-push configurations, projects with height above 2.2 m may require a pull cord for easier operation.

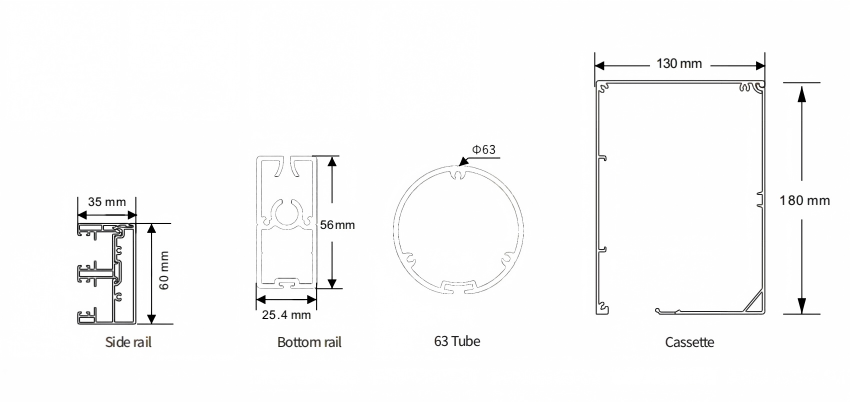

For WR130-180 projects, the final configuration should be selected according to opening width, height, fabric weight, operation method, and installation condition. The system uses a 130 × 180 mm cassette, 35 × 60 mm side rai,l and 63 mm grooved tube structure for dual-layer guided blind applicatio.ns
Fabric & Configuration Options
WR130-180 fabric selection should be based on the required daylight effect, privacy level, and room-darkening performance.
For hotel rooms and bedrooms, one layer can be configured for softer daytime light while the other layer provides stronger privacy or blackout. For offices and meeting rooms, fabric combinations can be selected to reduce glare while maintaining a professional interior appearance.
For special fabrics, an optional T-tape configuration can be used to improve fabric flatness and finished appearance.
Recommended Applications
WR130-180 is suitable for indoor spaces where one window needs multiple shading modes.
Typical applications include hotel rooms, bedrooms, apartments, offices, meeting rooms, and premium residential spaces. It is especially useful where users need daytime light filtering, privacy contro,l and stronger room-darkening within one clean window installation.
For B2B projects, WR130-180 is suitable for hotels, residential developments, and office projects that need a more flexible indoor shading solution than a single-layer roller blind.
Project Configuration Support
For WR130-180 projects, NewHoo can help match the fabric combination, operation method, tube configuratio,n and bottom rail according to the opening size and project requirement.
By reviewing window width, height, fabric choice, privacy requireme,nt and installation condition, NewHoo can recommend a configuration that fits the actual indoor use.
Send us your opening width, height, preferred fabric combination, privacy requirement, and installation photos. NewHoo can help recommend the suitable WR130-180 dual-layer indoor guided blind configuration for your project.
