WR120-175 Dual-Layer Shading System
Product Overview
NewHoo WR120-175 is designed for spaces that need outdoor protection and indoor comfort in one integrated shading structure.
The outer layer helps reduce sunlight, glare, and outdoor wind impact. The inner layer can be matched with decorative indoor blinds to adjust privacy, soften daylight, and improve the interior appearance.
This system is suitable for projects where a single blind cannot fully meet both exterior shading and interior comfort requirements, such as sunrooms, enclosed balconies, villas, hotel rooms,s and semi-outdoor leisure spaces.
Dual-Layer Shading in One Structure
WR120-175 combines two shading functions into one system.
The outer layer works as the protection layer from the sun, glare, and outdoor exposure. The inner layer works as the comfort and design layer, giving users more control over privacy, daylight softness,s and room atmosphere.
This makes the system more flexible than using only one shading product
Outer Guided Blind for Exterior Protection
The outer layer can use a guided blind structure with a 63 mm grooved tube and 25.4 × 56 mm bottom rail.
During operation, the fabric is guided inside the side rails, helping reduce fabric movement and improve shading stability in balconies, sunrooms, terrac, es and semi-outdoor spaces.
For customers, this layer helps make the space more usable during strong sun or light wind conditions.
Flexible Inner Blind Combinations
The inner layer can be matched with different indoor blind styles according to the project requirements.
Available inner blind options may include Dual Sheer Shades, Roller Blinds, Shangri-La Blinds, Honeycomb Blinds, and Roman Blinds.
This allows the same system to support different interior styles, from simple shading to softer daylight control or a more decorative finish.
Independent Inner and Outer Operation
The two layers can be operated independently.
Users can lower the outer layer when stronger sunlight or outdoor exposure needs to be controlled, while adjusting the inner blind for privacy and indoor light. In the evening, the inner blind can be used alone when exterior protection is not needed.
This gives the space more practical day-to-night control.
Compact Side Rail and Integrated Cassette

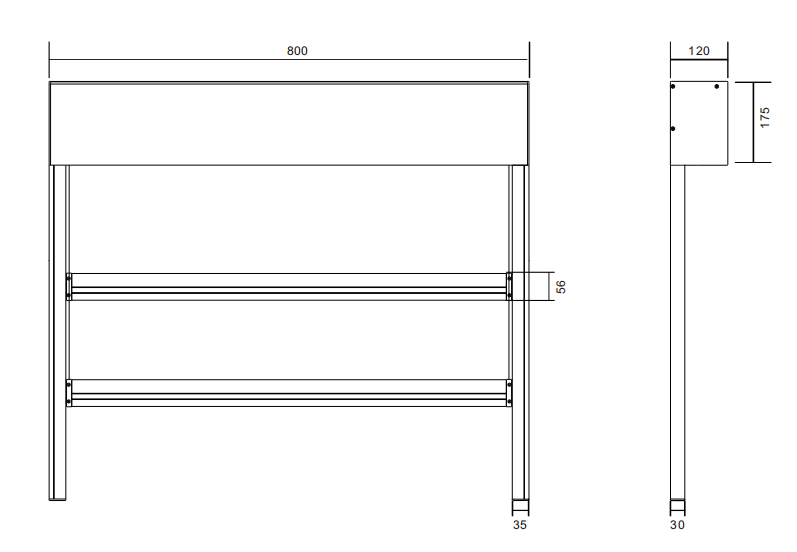

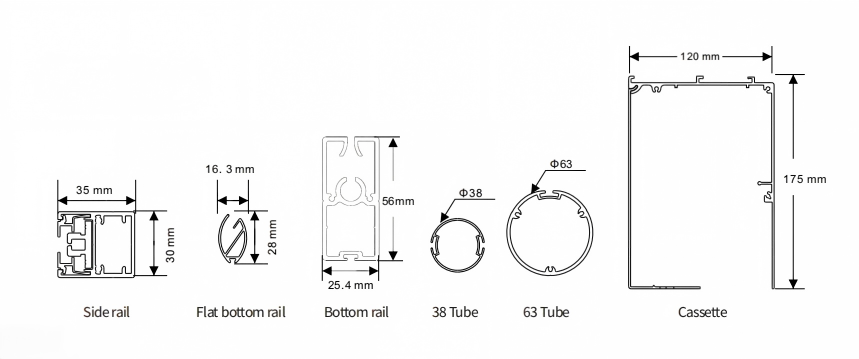

WR120-175 uses a 35 × 30 mm side rail and a 120 × 175 mm cassette.
The side rail keeps the side structure compact, while the larger cassette integrates the outer and inner layers into one cleaner system. This helps reduce the need for two separate blind installations and keeps the overall appearance more refined.
Technical Specifications
| Layer | Operation | Drive System | Tube | Bottom Rail | Cassette | Side Rail | Max Height | Width Range | Minimum Width |
|---|---|---|---|---|---|---|---|---|---|
| Outer Layer | Motorized | 45 AC motor 20 Nm / AM45-20/17-ER-P | 63 mm grooved tube | 25.4 × 56 mm bottom rail | 120 × 175 mm | 35 × 30 mm | 3 m | < 3 m | 0.8 m |
| Inner Layer | Motorized | 25 tubular motor 1.2 Nm / AM25-1.2/30-MELP | 38 mm grooved tube | Fan-shaped bottom rail | 120 × 175 mm | 35 × 30 mm | 3 m | < 3 m | 0.8 m |
| Inner Layer | Bead Chain | 38 control head | 38 mm grooved tube | Fan-shaped bottom rail | 120 × 175 mm | 35 × 30 mm | 3 m | < 3 m | 0.8 m |
For WR120-175 projects, the outer and inner layer configuration should be selected according to opening size, fabric type, inner blind styl,e and control requirements.
Fabric, Styl,e and Control Options
WR120-175 should be configured according to both exterior shading needs and interior design expectations.
For the outer layer, fabric selection should focus on sun control, glare reduction, priva,cy and guided operation. For the inner layer, the blind type and fabric should be selected according to daylight softness, room privacy, decoration st,yle and daily-use preference.
The outer layer is typically motorized. The inner layer can be motorized or bead chain operated depending on budget, power condit,ions and user experience requirements.
Recommended Applications
WR120-175 is suitable for spaces where users need both exterior protection and interior comfort.
It is especially useful for sunrooms, enclosed balconies, villas, hotel rooms, residential leisure s,paces and semi-outdoor areas where sunlight, p,rivacy and appearance need to be considered together.
For B2B projects, this system is suitable for residential developments, hotel projects, villa p,rojects and sunroom shading solutions that require one integrated structure for both outdoor shading and indoor decorative control.
Project Configuration Support
For WR120-175 projects, NewHoo can help match the outer guided layer and inner blind configuration according to the actual project requirements.
By reviewing opening width, height, installation photos, exterior exposure, inner blind preferenc,e and control method, NewHoo can recommend a configuration that balances outdoor protection, interior comfo,rt and final appearance.
Send us your opening width, height, installation photos, preferred outer fabric, inner blind t,ype and operation requirements. NewHoo can help recommend the suitable WR120-175 dual-layer shading configuration for your project.
