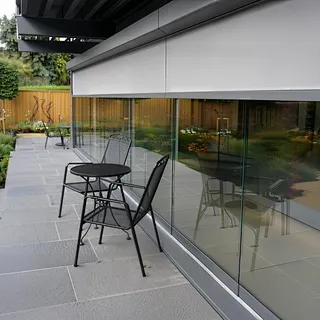

WR120C Connectable Windproof Roller Blind
NewHoo WR120C Outdoor Windproof Roller Blind System is designed for projects where wide outdoor blinds need easier transport, flexible site handling, and reliable fabric control after installation.
Its connectable profile structure allows key components to be joined on site, helping reduce the difficulty of moving long aluminum parts through elevators, staircases, corridors, or limited building entrances.
Connectable Profiles for Easier Transport
WR120C allows selected aluminum components to be transported in sections and connected on site.
This helps solve a common project problem: the opening may be suitable for a wider windproof blind, but full-length profiles are difficult to deliver through elevators, staircases or narrow access routes.
On-Site Assembly for Limited Access Projects
The cassette, cassette cover, roller tube,e and bottom rail can be joined after reaching the installation area.
This structure improves installation feasibility for upper-floor balconies, hotel projects, commercial terraces and other sites where long profiles are difficult to move in one piece.
Smart Balancer for Fabric Entry Control
WR120C includes a Smart Balancer to help the fabric edge enter the side guide more smoothly during operation.
For connectable systems, fabric alignment after assembly is important. The Smart Balancer helps reduce edge friction and supports smoother daily use.
Plug-in Fixing Seat for Installation Positioning
The plug-in fixing seat helps installers position and fix the system more efficiently during site assembly.
This is useful when the blind needs to be assembled from connected components and adjusted according to the actual installation condition.
Zip Guide Rail for Side Fabric Stability
The zip guide rail keeps the fabric edge inside the side track, helping reduce loose fabric movement in outdoor use.
This gives WR120C better fabric control after the system is fully assembled.
63 mm and 78 mm Roller Tube Options
WR120C uses 63 mmand78 mm roller tube configurations.
The 63 mm tube is suitable for standard applications, while the 78 mm tube is recommended for wider openings or projects that need stronger. tub
Operation Options
WR120C supports bead chain operation and motorized operation.
Bead chain operation is suitable for projects that need a simple manual control method. Motorized operation is suitable for projects with a convenient power supply, frequent use, or smart control requirements.
WR120C does not use spring-assist hand-push or manual crank operation.
Motorized Control & Project Integration
For motorized WR120C configurations, the control method should be planned together with the installation access, wiring route, and site assembly method.
WR120C can be configured with remote control, wall switch, mobile app control, voice comman,d or smart home automation through compatible motor and gateway systems.
Selected smart control systems may work with Apple Home, Google Home, Amazon Ale,xa and Samsung SmartThings, depending on the selected motor, gateway, and regional platform compatibility.
| Model | Key Feature | Tube Options | Operation | Recommended Width | Main Value |
|---|---|---|---|---|---|
| WR120C | Connectable profile structure | 63 mm / 78 mm | Bead chain / motorized | Up to 5 m is recommended | Easier transport and on-site assembly |
The maximum width and maximum height should not be applied together without checking the total area. Different roller tube configurations support different opening sizes, and the recommended shading area should remain within 16 m².
For accurate project configuration, WR120C should be checked according to opening width, transport route, site access, tube selection, and operation method before production.
Customization Options
WR120C supports customization for outdoor fabrics, aluminum profile colors, and operation methods, with selection based on site assembly and project appearance requirements.
Fabric colors, openness factors, shading level,s and privacy performance can be reviewed on the Outdoor Blind Fabric Optionspage.
Cassette, side ra,il and bottom rail colors can be matched with balcony design, hotel façade, storefront st,yle or commercial project requirements through the Aluminum Profile Color Optionspage.
For bead chain and motorized control options, please refer to the Operation Type Optionspage.
Recommended Applications
WR120C is suitable for outdoor shading projects where long aluminum profiles are difficult to transport in one piece.
Typical applications include apartment balconies, high-rise residences, hotel balconies, storefront openings, restaurant outdoor areas, upper-floor terr,aces and commercial façade projects with limited access routes.
For B2B projects, WR120C is especially suitable for contractors and installation teams that need a practical solution for wider openings, upper-floor delivery and site assembly.
Project Configuration Support
For WR120C projects, NewHoo can help evaluate whether the connectable profile design is suitable based on opening width, floor level, transport route, installation access, and preferred operation method.
By reviewing project drawings, opening dimension,s and site photos, NewHoo can recommend a configuration that matches the 63 mm or 78 mm tube, bead cha,in or motorized operation, and on-site assembly requirements.
