WR110 Pergola Windproof Roller Blinds

Product Brief

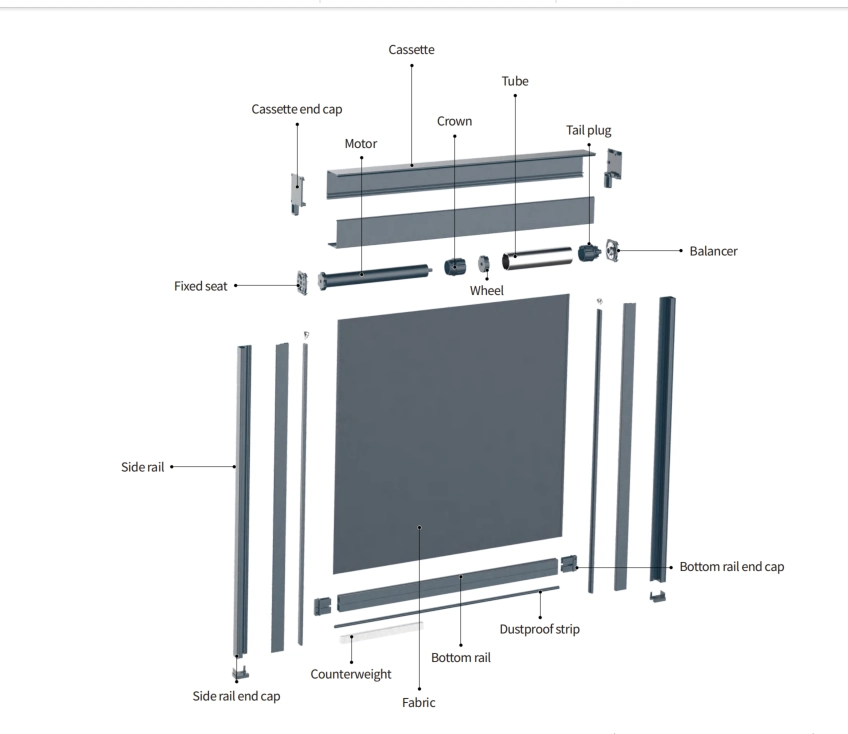

WR110 is an outdoor windproof roller blind system developed for pergolas, gazebos, and semi-open outdoor structures. Unlike ordinary roller blinds with free-hanging fabric edges, WR110 guides the zipper edge of the fabric into the side rail, allowing the blind to run more smoothly and remain more stable in outdoor airflow.

For standard pergola openings under 4 m wide, the system commonly uses a 63 mm grooved tube. For wider openings up to 5.4 m, the 78 mm double-layer tube provides stronger support for the fabric span. WR110 supports motorized, manual push, and bead chain operation, so the final solution can match different opening sizes, installation height,s and power conditions.

The WR110 series includes two structural options. WR110A is designed with a Smart Balancer structure, which helps the fabric enter the guide rail more smoothly and improves long-term running stability. WR110B uses a plug-in mounting seat structure, making installation, disassembly, ly and future maintenance more convenient for contractors and project installers.

Why Choose WR110 for Pergola Shading

Semi-open outdoor spaces often face several practical problems during daily use. Direct sunlight creates glare and heat, side wind makes loose fabric move, and open sides can reduce privacy in villas, restaurants,nts and public terrace areas. Standard roller blinds may provide basic shading, but they often struggle with fabric sway and side gaps when used in exposed outdoor spaces.

WR110 solves these issues through a guided fabric structure. The fabric edge is held inside the side rail instead of hanging freely, helping create a more sheltered and comfortable outdoor area. For residential projects, it improves outdoor living comfort. For commercial spaces, it helps restaurants, cafés, and hotels make outdoor seating areas more usable for guests and daily operation.

Zip-Guided Fabric Control

The core advantage of WR110 is its zip-guided fabric structure. The fabric edge is connected with a zipper and runs inside the side rail during opening and closing. This design helps reduce side gaps and fabric movement, especially in pergolas and patios where wind may come from different directions.

For users, this means the blind does not simply hang in the opening like a loose fabric shade. Instead, both fabric edges remain guided, giving the system a cleaner appearance and more stable performance in semi-open outdoor spaces.

---

Fabric Guiding Technology

WR110 uses fabric guiding technology to help the zipper edge enter the side rail in a straighter direction. This reduces fabric deviation, edge friction, and unstable movement during daily operation.

This structure is especially useful for outdoor roller blinds because pergolas, gazebos, and terraces are often exposed to uneven airflow. By improving the entry direction of the fabric edge, WR110 helps the blind operate more smoothly and reduces unnecessary wear along the fabric edge.

---

Cordless-Friendly Operation for Child Safety

In family terraces, villa gardens, hotel patios, os and other areas where children may be present, exposed control chains can create unnecessary safety concerns. WR110 can be configured with motorized operation or manual push operation, allowing users to control the blind without loose hanging cords or chains.

The motorized system provides remote or smart control for large and frequently used outdoor openings. The manual push system also offers a clean hand-operated option for smaller and lower openings. Both options help keep the control area simpler and safer, especially in child-accessible spaces.

Bead chain operation remains available for selected small openings and budget-controlled projects. For family-oriented spaces, hotels, schools, parent-child leisure areas, or residential terraces, motorized and manual push configurations provide a safer cordless-friendly choice.

---

Wider Coverage for Pergola Openings

Many pergola and terrace projects require wider shading coverage than standard window openings. WR110 can cover openings up to 5.4 m wide when configured with a 78 mm double-layer tube.

This helps reduce the need for multiple separate blinds on the same side of a pergola. For villas, hotels, and commercial terraces, fewer separate sections can create a cleaner façade and a more integrated outdoor shading effect.

---

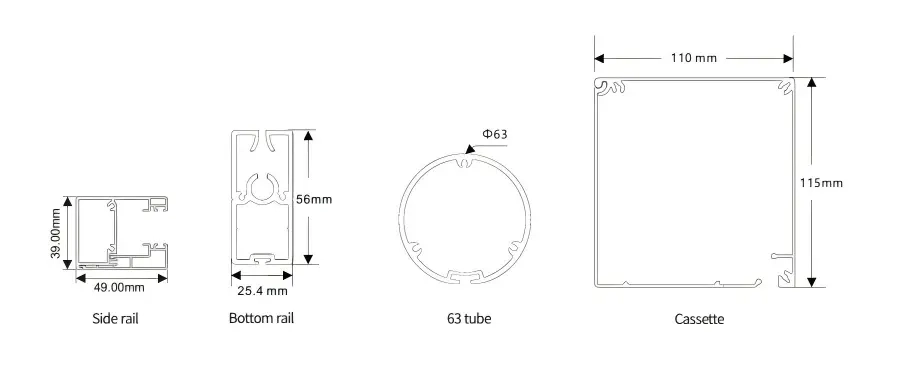

110 × 115 mm Outdoor Cassette

The WR110 system uses a 110 × 115 mm cassette, giving the product enough internal space for outdoor roller blind configurations while maintaining a clean architectural appearance. The cassette works well with pergola frames, outdoor columns, and terrace structures, making the system suitable for both residential and commercial outdoor projects.

The side rail size is 49 × 39 mm, and the bottom rail size is 25.4 × 56 mm. The standard tube is a 63 mm grooved tube, while the 78 mm double-layer tube is used for wider pergola openings. Clip-on side rails and three-piece side rails are available to match different installation conditions.

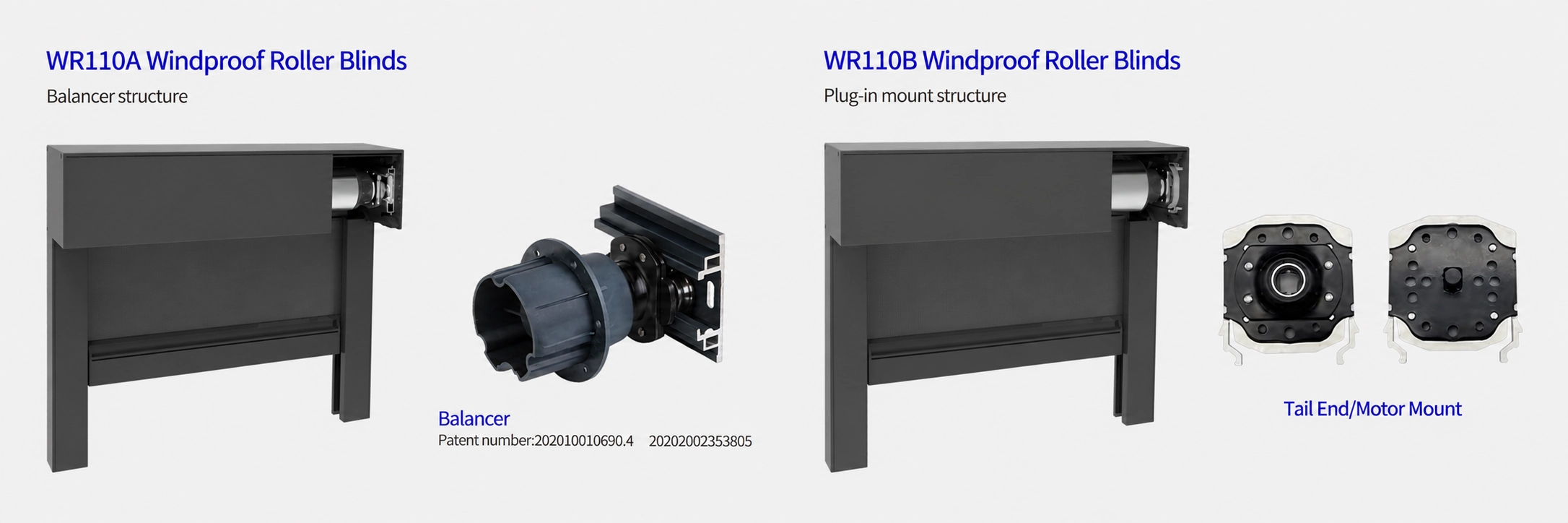

WR110A and WR110B Selection Guide

WR110A is suitable for projects where daily operation stability is the priority. Its Smart Balancer structure helps the fabric enter the guide rail more smoothly, reducing edge friction and improving long-term fabric running stability. It works well for pergolas, patios, and outdoor seating areas that are used frequently.

WR110B is suitable for projects that require faster installation and easier maintenance access. Its plug-in mounting seat structure helps installers reduce on-site assembly difficulty and makes future disassembly or servicing more convenient. This structure works well for contractors, commercial terrace projects, and outdoor shading systems that need efficient installation and after-sales maintenance.

In simple terms, WR110A focuses more on smoother fabric running, while WR110B focuses more on installation and maintenance convenience.

Size and Configuration Guide

For openings under 4 m wide, WR110 commonly uses the 63 mm grooved tube. For wider openings up to 5.4 m, the 78 mm double-layer tube provides stronger support for the fabric span.

Motorized systems fit wide, high, and frequently used openings. Manual push and bead chain systems fit smaller and lower-height spaces. The minimum width is 0.76 m for a 35 motor system, 0.8 m for a 45 motor system, em and 1.2 m for a manual push system.

Applications

Pergolas and Gazebos

WR110 provides side shading for pergola and gazebo openings without permanently closing the space. When the blind is lowered, it improves shade, privacy,cy and comfort. When raised, the outdoor area remains open and flexible.

Villa Terraces and Private Gardens

For residential outdoor areas, WR110 helps create a more private and comfortable space for dining, reading, resting, ing and family gatherings. Motorized and manual push configurations also reduce exposed chain risks in areas where children may play or spend time.

Outdoor Restaurants and Cafés

For restaurants and cafés, side wind and direct sunlight can affect the comfort of outdoor seating. WR110 helps create a more protected dining area, allowing terraces and open-air seating zones to be used more comfortably during daily business hours.

Hotels and Leisure Areas

For hotels, resorts, orts and leisure spaces, WR110 gives patios and semi-open lounges a more finished appearance. The cordless-friendly motorized option is especially suitable for guest-facing areas where clean appearance, convenience, and safety are important.

Commercial Terraces and Storefronts

For commercial outdoor spaces, WR110 provides flexible shading without fixed wall construction. It helps improve comfort while keeping the storefront, terrace,erra,ce, or outdoor area open when needed.

Operation Options

Motorized operation fits restaurants, hotels,villasl, las and high-frequency outdoor spaces. It works especially well for wide openings, high installation positions, and projects that require convenient daily control. It also keeps the control area free from exposed chains, which is useful for family and guest-facing spaces.

Manual push operation fits smaller openings, installation heights, nd areas without a power supply. It provides a simple cordless control method when the user can easily reach the bottom rail. For higher installations, a pull hook or push rod can make operation easier.

Bead chain operation fits small openings where wiring is inconvenient,t and the blind is not operated frequently. It works better in lower-height areas where manual control is easy and safe. For child-accessible spaces, motorized or manual push operation keeps the control method cleaner and safer.

Installation and Maintenance Advantages

WR110 supports different outdoor installation conditions. The optional clip-on side rail and three-piece side rail allow the system to adapt to pergola frames, outdoor column walls,s and commercial terrace structures.

For projects that require easier installation and maintenance, WR110B provides a plug-in mounting seat structure. This helps reduce on-site assembly difficulty and makes the system easier to remove or access during maintenance. For commercial projects, easier maintenance is especially valuable because restaurants, hotels, etc., els and leisure spaces need shading systems that can be serviced with less downtime.

Customization Options

NewHoo can customize WR110 pergola windproof roller blinds according to opening size, pergola frame structure, installation surface, facade,e and usage requirements. The system can be adjusted by width and height, operation method, tube selection, side rail structure, bottom rail configuration, profile color, and outdoor fabric selection.

For OEM/ODM projects, NewHoo also supports structure matching, configuration, ration, and batch project requirementresidentialdcommercialercialm, commercial, and hospitality applications. This makes WR110 suitable not only for single outdoor shading projects, but also for dealer-contractor jobs and project-based procurement.

Project Information Needed for Quotation

To match the correct WR110 configuration, NewHoo needs the opening width and height, installation location, pergola or gazebo frame structure, preferred operation method, power supply condition, fabric requirement,t and project quantity.

For wide openings or exposed outdoor areas, photos or drawings of the installation area help confirm whether WR110A or WR110B fits the project better, and whether the 63 mm grooved tube or the 78 mm double-layer tube should be selected.
