P001 Ultra-High Double-Layer Blinds
No-Cassette Shading System for Tall Façades and Reserved Curtain Boxes
P001 is an ultra-high double-layer windproof roller blind system designed for tall façades, high windows and large vertical openings. It is suitable for projects where a curtain box, recessed pocket, or hidden installation space has already been reserved, so an additional exposed cassette is not required.
The system uses a double-roller structure with two fabric layers, allowing one opening to achieve different shading effects. For example, one layer can be used for daylight control, while the other can provide stronger privacy or darker shading.
Built for Ultra-High Openings
Tall windows and façade openings need more than a standard roller blind. As the height increases, fabric movement, side guidance,e and installation accuracy become more important.
P001 is designed for high-opening projects from 3 m to 12 m by configuration, with a recommended width range of 0.7 m to 3 m. Different bracket and roller tube systems can be selected according to project height, helping the blind match real site conditions more safely and professionally.

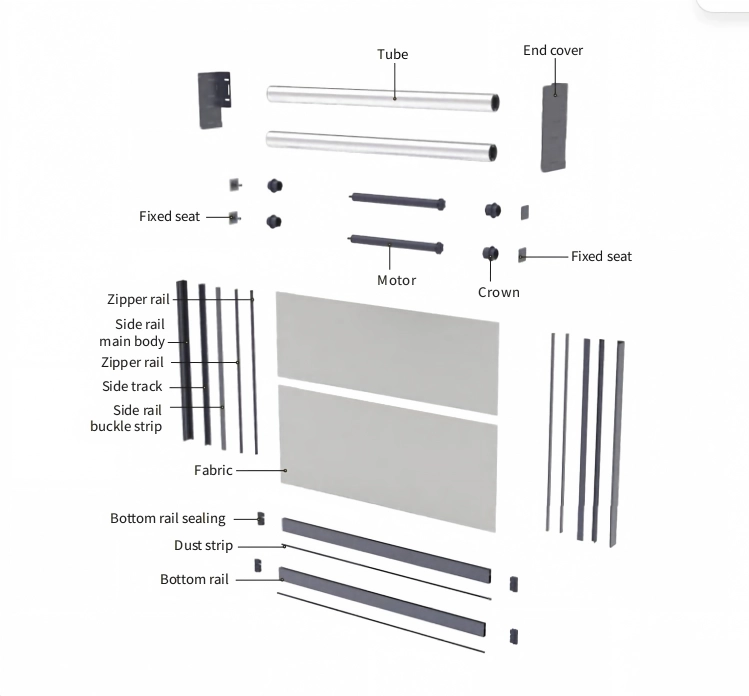

Double Rollers With Double Fabric Layers
P001 uses two rollers with two fabric layers in one system. This allows the same high opening to meet different needs for sunlight control, privacy, and shading strength.
For hotels, offices, commercial façades and high residential windows, this reduces the need to install two separate blind systems. The fabric combination can be selected according to the project, such as screen fabric for soft daylight control and blackout or dim-out fabric for stronger shading.
No-Cassette Design for Existing Curtain Boxes
Many high-window and façade projects already include a built-in curtain box or recessed shading pocket. In this situation, adding another cassette can create unnecessary bulk and visible profiles.
P001 is designed without an external cassette, making it easier to install inside the reserved building space. This keeps the system more integrated with the façade and is especially suitable for projects where the shading structure needs to be hidden as much as possible.
Double Rollers With Double Fabric Layers
P001 uses two rollers with two fabric layers in one system. This allows the same high opening to meet different needs for sunlight control, privacy, and shading strength.
For hotels, offices, commercial façades and high residential windows, this reduces the need to install two separate blind systems. The fabric combination can be selected according to the project, such as screen fabric for soft daylight control and blackout or dim-out fabric for stronger shading.
No-Cassette Design for Existing Curtain Boxes
Many high-window and façade projects already include a built-in curtain box or recessed shading pocket. In this situation, adding another cassette can create unnecessary bulk and visible profiles.
P001 is designed without an external cassette, making it easier to install inside the reserved building space. This keeps the system more integrated with the façade and is especially suitable for projects where the shading structure needs to be hidden as much as possible.
Double-Lock Side Rail Guidance
For ultra-high blinds, long fabric panels need stable side guidance. P001 uses a double-lock double-layer side rail system with sponge fixing to help keep the fabric guided during operation.
This structure helps reduce fabric sway and improves running stability, especially for taller applications where ordinary free-hanging blinds may not perform well.
Height-Based Bracket and Tube Matching
P001 is not configured with one fixed structure for all heights. Different installation bracket systems and roller tube configurations can be selected according to the project height.
This is important for engineering projects because a 7 m opening and a 12 m opening do not require the same structural support. Matching the bracket and roller tube to the height helps improve installation reliability and long-term operation.
Side-Fixed Bracket for Better Installation Accuracy
The bracket is fixed from the side, and the plug-in feet connect with the side rails. This helps reduce installation deviation and improves the connection between the main system and the guide rails.
For ultra-high openings, small installation errors can affect fabric movement. This structure helps installers control alignment more effectively during project installation.

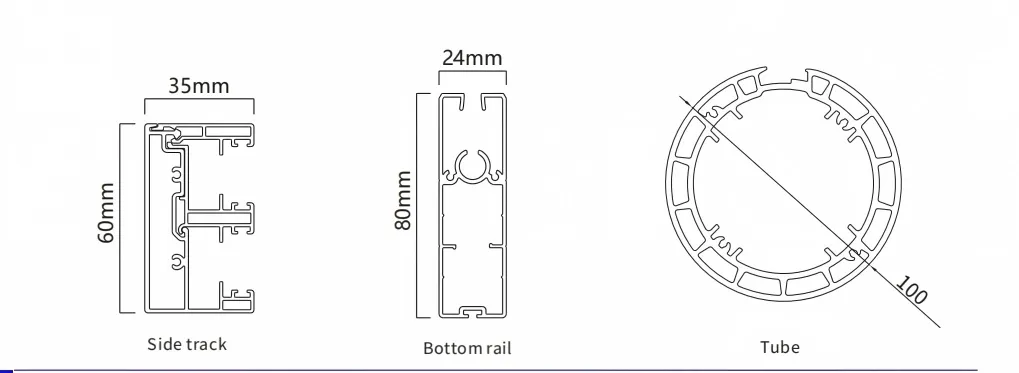

System Specification Guide
| System Type | Operation | Fabric System | Recommended Size | Side Rail | Installation System | Application |
|---|---|---|---|---|---|---|
| P001 Ultra-High Double-Layer Windproof Roller Blind | Motorized, 45 tubular motor or 20 Nm | Double rollers with double fabric layers | Width 0.7–3 m; height 3–12 m by configuration | Double-lock double-layer side rail with sponge fixing | No-cassette structure for existing curtain boxes; height-based bracket and roller tube matching | Tall façades, high windows, atriums, and large vertical openings |
Application Scenarios
P001 is suitable for tall building façades, hotel high windows, office building openings, commercial atriums, high residential glazing and large vertical shading projects.
It is especially suitable for projects that already have reserved curtain boxes and need a hidden, motorized, double-layer shading system for high openings.
Why Choose NewHoo P001?
P001 is made for projects where ordinary roller blinds are not enough. It combines ultra-high size capacity, double rollers, double fabric layers, and side rail guidance in one no-cassette system.
For project buyers and installers, the main value is clear: the system can be matched by height, installed into reserved curtain boxes, and configured for different shading needs without adding an extra exposed cassette.
Custom Project Support
NewHoo can recommend a suitable P001 configuration based on your project conditions.
Please provide the opening width, opening height, curtain box size, installation position, fabric requirement, wind environment, site photos or drawings, q,uantity and project location.
