DK120-63 Wire-Guided Outdoor Roller Blinds
Stable Outdoor Shading for Tall Windows and Façades
DK120-63 is a motorized wire-guided outdoor roller blind system designed for homes, hotels, office buildings, and façade shading projects. It is suitable for tall outdoor windows where sunlight control, glare reduction,n and stable fabric movement are required.
Instead of using full side rails, DK120-63 uses 4.0 mm stainless steel wire guidance to help the fabric move along a controlled path. This makes the system a practical option for projects that need outdoor shading with a cleaner and lighter guide structure.
Designed for Tall Outdoor Window Shading
Tall exterior windows often receive strong sunlight and glare, especially on hotel façades, office buildingss and residential exterior openings. If the blind fabric is not properly guided, it may sway, shift or look unstable during outdoor use.
DK120-63 is designed for this type of opening. The stainless steel wire guide helps control the fabric on both sides, improving fabric stability while keeping the system simpler than a full side-rail solution.
Stable Fabric Movement Without Full Side Rails
For some building façades, full side rails may not be the best choice because of appearance, installation space, or wall conditions. DK120-63 uses wire guidance instead, giving the fabric a clear running path while keeping the side structure more minimal.
This helps the blind provide shading and light control without adding heavy side profiles to the window area.
Suitable for Higher Openings
DK120-63 is suitable for tall outdoor blind applications. When the width is around 3 m, the system height can reach over 5 m, depending on fabric weight, wind exposure, and installation conditions.

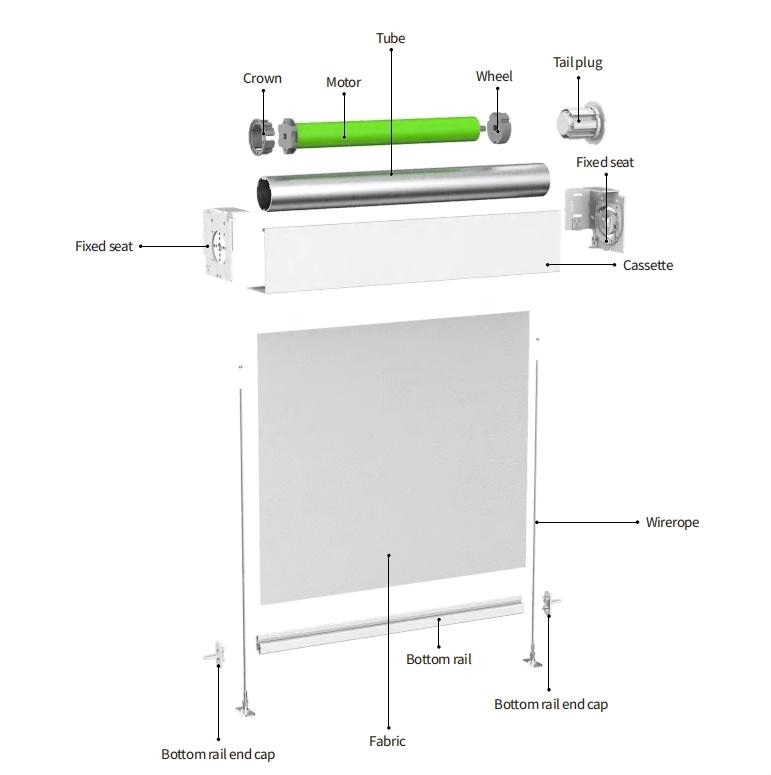

The 63 mm roller tube, balanced tail plug,g and motor fixing system help support stable rolling and operation for higher outdoor windows.
Stronger Structure for Outdoor Installation
The system uses a 120 × 120 mm main structurewith ah2.5 mm steel plate support, providing a stronger base for outdoor mounting. A decorative cover can also be added to improve the finished appearance.
For long-term exterior use, the structure is designed to support outdoor shading applications where stability and installation strength are important.
Flexible Wire Guide Port Options
Different buildings have different installation conditions. DK120-63 supports rear-mounted and side-mounted wire guide sealing ports, allowing the system to adapt to different wall, window, and façade structures.
This makes project configuration easier when the site does not follow a standard installation layout.
System Specification Guide
| System Type | Operation | Guide System | Main Structure | Roller Tube | Recommended Size | Installation Flexibility |
|---|---|---|---|---|---|---|
| DK120-63 Wire-Guided Outdoor Roller Blind | Motorized | 4.0 mm stainless steel wire guidance | 120 × 120 mm structure with 2.5 mm steel plate and optional decorative cover | 63 mm roller tube with balanced tail plug and motor fixing system | Around 3 m width; height can reach over 5 m by configuration | Rear-mounted or side-mounted wire guide port |
Final configuration should be confirmed according to opening width, height, fabric weight, wind exposure,e and installation conditions.
Application Scenarios
DK120-63 is suitable for tall residential windows, hotel façade windows, office building windows, commercial exterior openings, and outdoor shading projects that need guided fabric movement without full side rails.
It is especially useful for projects where high window shading, cleaner side appearance, and motorized outdoor operation need to be considered together.
Why Choose NewHoo DK120-63?
DK120-63 is designed for customers who need outdoor shading on taller windows but do not want a full side-rail structure. The stainless steel wire guidance helps reduce fabric sway, while the 63 mm roller tube and reinforced main structure support higher blind applications.
For hotels, offices,s and residential façades, it provides a more stable and professional solution than ordinary free-hanging outdoor roller blinds.
Custom Project Support
NewHoo can recommend a suitable DK120-63 configuration based on your project conditions.
Please provide the opening width, opening height, installation position, fabric requirement, wind environment, wire guide port preference, site photos or drawings, quantity,ty and project location.
