Retractable Screen Door for Wide Openings

Horizontal Retractable Screen Door for Wide Openings

VR100 is a horizontal retractable screen door system designed for balcony doors, patio doors, terrace openings and large entrance areas. It provides insect protection and ventilation while keeping the screen hidden inside the cassette when not in use.

Unlike a vertical roller blind, VR100 uses a hand-push sliding operation. The screen moves horizontally across the door opening, making it easier to use for daily entry and exit.

Designed for Door Openings That Need Ventilation and Insect Protection

Large door openings often need fresh air, but fixed screens can take up space and affect access. VR100 solves this with a retractable screen structure. When the screen is needed, it can be pulled out smoothly. When not in use, it retracts into the cassette to keep the doorway clean and open.

This makes VR100 suitable for residential balconies, patio doors, garden entrances, villa openings, and commercial door areas that require both airflow and insect protection.

Smooth Horizontal Sliding Operation

VR100 changes the traditional up-and-down roller operation into a horizontal sliding structure. This makes the system more suitable for doors, where users need to walk through frequently.

The hand-push operation is simple and direct. Users can open or close the screen from the side without lifting or pulling from the top or bottom.

Retractable Hidden Screen Design

The screen fabric is stored inside the cassette when not in use. This helps keep the doorway neat and avoids the bulky look of fixed screen doors.

For modern balcony, terrace, and patio openings, the retractable design keeps the space more flexible. The door area can remain open when insect protection is not required.

Stops at Any Position

VR100 uses a built-in cylindrical winding system and constant-force spring compensation. This structure allows the screen to stop at the desired position instead of only being fully opened or fully closed.

The system also helps maintain stable retraction with different fabric thicknesses, making it more adaptable to different screen fabric requirements.

Better Insect Protection with T-Shaped Pulling Belt

VR100 uses upper and lower T-shaped pulling belts to improve the edge connection of the screen. This helps reduce gaps at the top and bottom areas, improving insect protection for door openings.

For balcony and patio doors, this detail is important because mosquitoes and small insects often enter through edge gaps.

Magnetic Push Bar Locking

The movable push bar uses magnetic strip locking. When the screen is closed, the magnetic structure helps the push bar lock more easily and stay more stable.

This improves the daily user experience, especially for doors that are opened and closed frequently.

Single and Double Opening Options

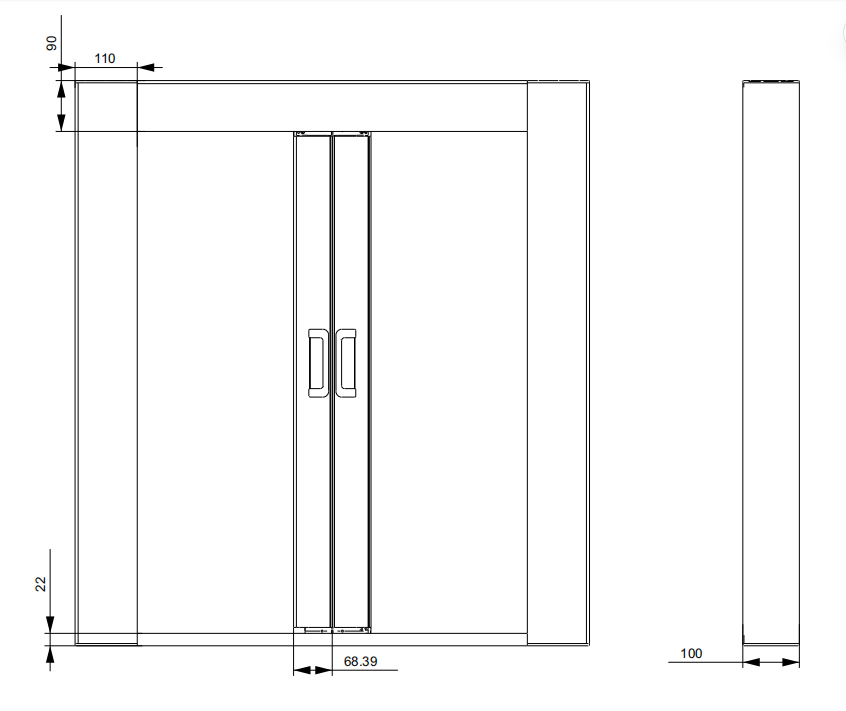

VR100 can be used for single-opening or double-opening door systems. Single-opening systems are suitable for common balcony and patio doors. Double-opening systems are suitable for wider entrances and large residential or commercial openings.

In a double-opening system, two fabric types with different openness factors can be used. One fabric can provide stronger insect protection and privacy, while the other can offer better airflow and visibility. This creates a flexible day-and-night screen effect for larger door openings.

---

Installation and Bottom Rail Options

VR100 supports embedded installation and inside-frame installation. The bottom rail can be embedded into the floor for a cleaner passage, which is suitable for new construction or projects with floor preparation.

For retrofit projects or spaces where floor cutting is not available, a non-embedded bottom rail can be selected. This gives the system more flexibility for different site conditions.

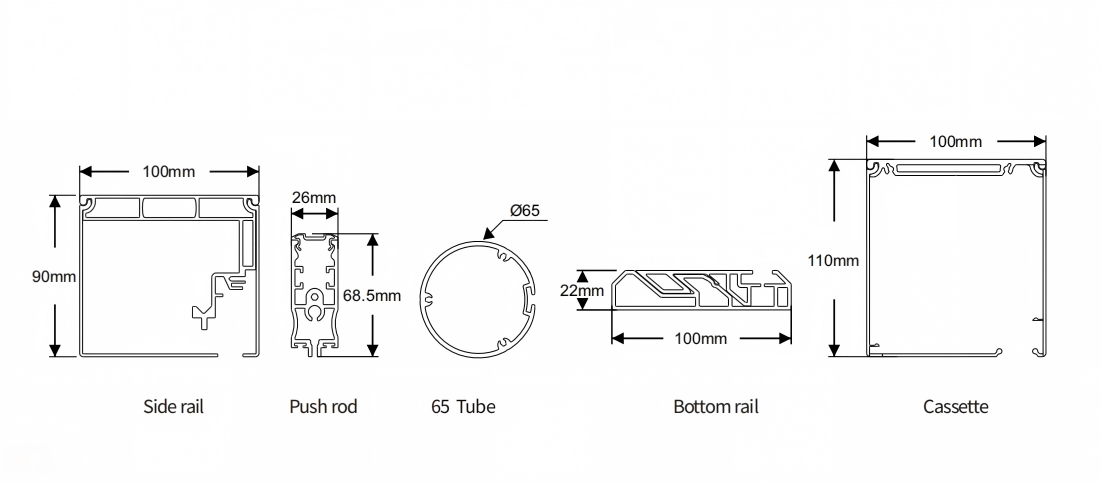

System Specification Guide

Final configuration should be confirmed according to door opening width, height, fabric thickness, single or double opening structure, a nd installation method.

Application Scenarios

VR100 is suitable for balcony doors, patio doors, terrace entrances, garden doors, villa openings, wide residential doorways, restaurant outdoor entrances, and commercial door openings.

It is especially useful for spaces that need insect protection without blocking ventilation or taking up extra door space.

Why Choose NewHoo VR100?

VR100 is designed for door openings, not window shading. Its horizontal sliding operation makes daily access easier, while the retractable structure keeps the screen hidden when not in use.

The built-in winding system allows the screen to stop at different positions. The T-shaped pulling belt improves insect protection, and the magnetic push bar makes closing more stable. For wider openings, single and double-opening options provide more flexible project matching.

Custom Project Support

NewHoo can recommend a suitable VR100 configuration based on your door opening size and installation conditions.

Please provide the door opening width, height, single or double opening preference, installation method, bottom rail requirement, fabric type, site photos or drawings, quantity, and project location.
