CAF230-170M Full Cassette Retractable Awning
Motorized Full Cassette Awning for Outdoor Shade

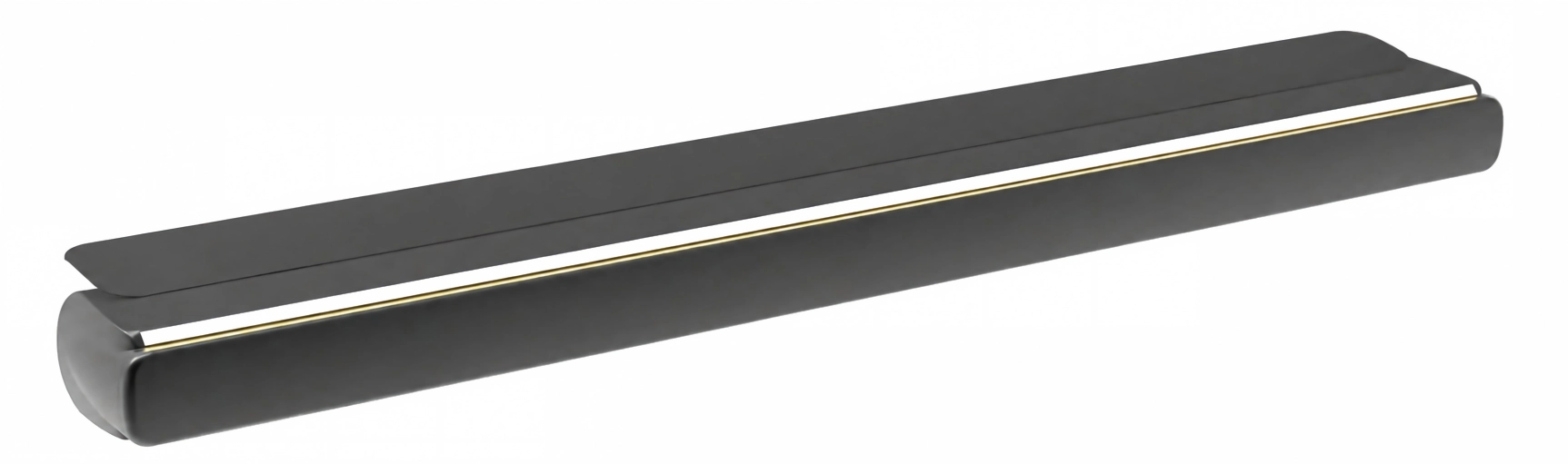

CAF230-170M is a motorized full cassette retractable awning designed for patios, villas, courtyards, storefronts, and outdoor leisure spaces. It provides shade during the day and keeps the fabric, arms, and main components protected inside the cassette when retracted.
The full cassette design gives the system a cleaner appearance after closing, making it suitable for projects that need both outdoor sun protection and a refined building façade.
Full Cassette Protection
When the awning is retracted, the fabric and folding arms are stored inside the cassette. This helps reduce exposure to dust, sunlig, ht and rain, while keeping the exterior more organized.
For residential and commercial façades, this design looks cleaner than ordinary open-arm awnings and is easier to match with modern building styles.
Stronger Structure for Outdoor Use

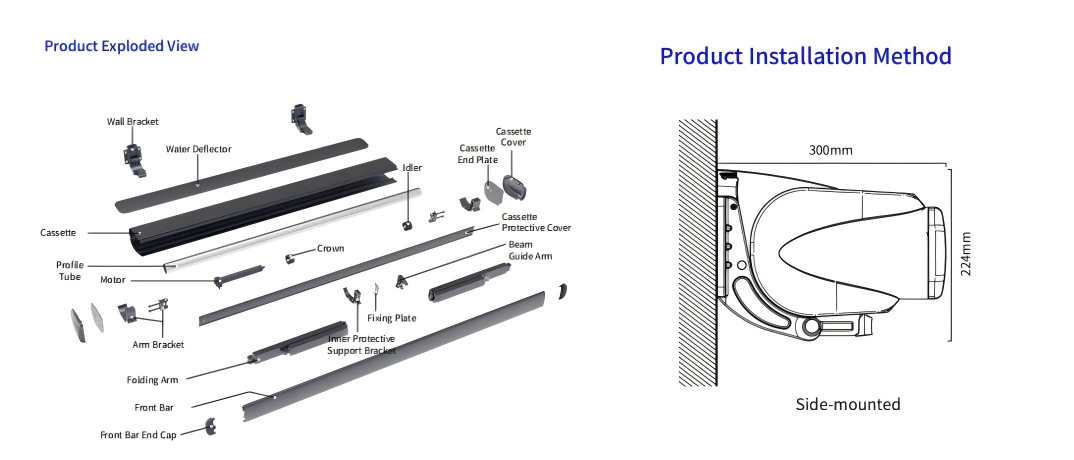

CAF230-170M uses a cast aluminum mounting bracket, thickened aluminum profiles, and 304 stainless steel bolts. These components help improve installation stability and connection durability for outdoor wall-mounted applications.
The system is suitable for projects that need a stronger retractable awning structure for daily shading use.
Integrated Lighting for Day and Night Use
Lighting strips can be added around the cassette edge, rims, and front cover. During the day, the awning provides shade; in the evening, the lighting helps improve outdoor visibility and atmosphere.
This makes CAF230-170M suitable for villas, courtyards, cafés, restaurants, and storefronts that need a more complete outdoor shading solution.
Silent Motorized Operation
CAF230-170M uses a silent DC motor for smoother and quieter opening and closing. This improves the user experience in homes, villas, clubs, and hospitality spaces where quiet operation is important.
Product Specification Guide
| System Type | Operation | Width / Projection | Cassette Design | Structure | Lighting | Application |
|---|---|---|---|---|---|---|
| CAF230-170M Full Cassette Retractable Awning | Motorized, silent DC motor | Width up to 6 m; projection 1–3.5 m; splicing available for wider projects | Full cassette storage for fabric, arms and main components | Cast aluminum bracket, thickened profiles, 304 stainless steel bolts | Lighting the rips of the cassette edge, arms, and front cover | Patios, villas, courtyards, storefronts, terraces, and outdoor leisure spaces |
Final size should be confirmed according to the projection, wall condition, installation height, and project requirements.
Application Scenarios
CAF230-170M is suitable for patios, villas, courtyards, terraces, residential balconies, storefronts, cafés, restaurants, clubs, and outdoor leisure areas.
It is especially suitable for spaces that need shade, night lighting, and a cleaner exterior appearance after the awning is closed.
Why Choose NewHoo CAF230-170M?
CAF230-170M combines full cassette protection, motorized operation, integrated lighting, and a reinforced mounting structure. It is a practical choice for outdoor spaces that need both shading performance and a more polished façade appearance.
For wider projects, splicing solutions are available. NewHoo can recommend a suitable configuration based on the required width, projection, wall condition, and lighting needs.
Custom Project Support
Please provide the installation width, required projection, wall condition, installation height, lighting requirement, fabric color preference, project photos or drawings, quanti, ty and project location.
